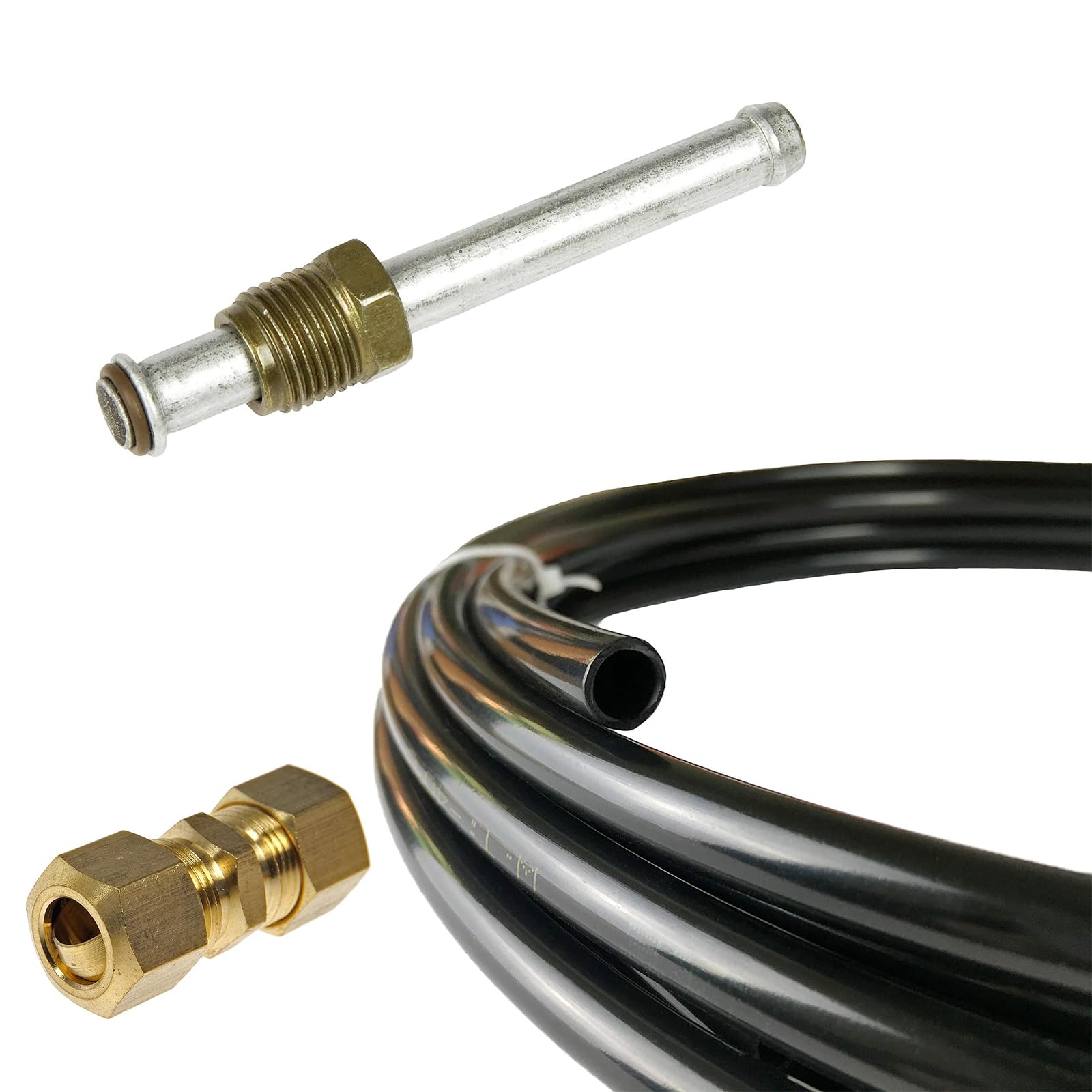

What is Plumbing and Pipe Fitting?

Plumbing and fittings Introduce

Plumbing and pipe fittings are systems and components used to convey liquids, gases, or chemicals safely in industrial and everyday applications.They transport water, air, or chemical fluids while controlling flow direction, pressure, and volume.The reliability of piping systems directly affects operational safety and efficiency.

What is Plumbing System?

Plumbing and pipe fitting are essential infrastructures in modern industry and daily life. Whether in industrial automation production lines, food and beverage processing, chemical plants, or electronics manufacturing and laboratory equipment, the choice of tubing materials and specifications directly affects system efficiency, safety, and service life.

Next, we will provide a detailed introduction to the four types of high-performance tubing systems produced by our company and their application features, including Polyurethane Tubing (PU Tubing), Nylon Tubing, Polyolefin Tubing, and Polyvinyl Chloride Tubing (PVC Tubing), helping customers quickly understand the advantages of each type of tubing and select the most suitable solution for their industry.

Four common types of fittings used in plumbing systems

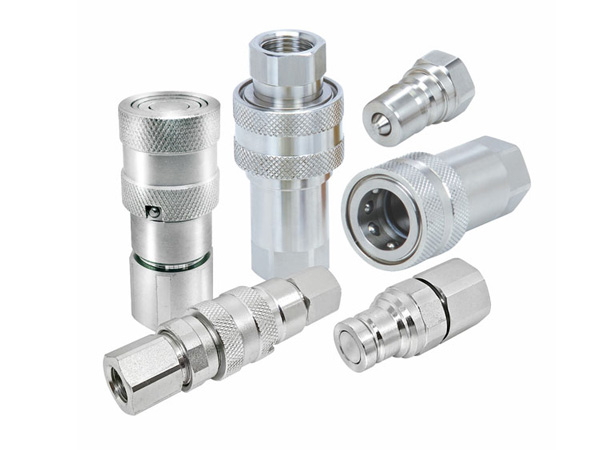

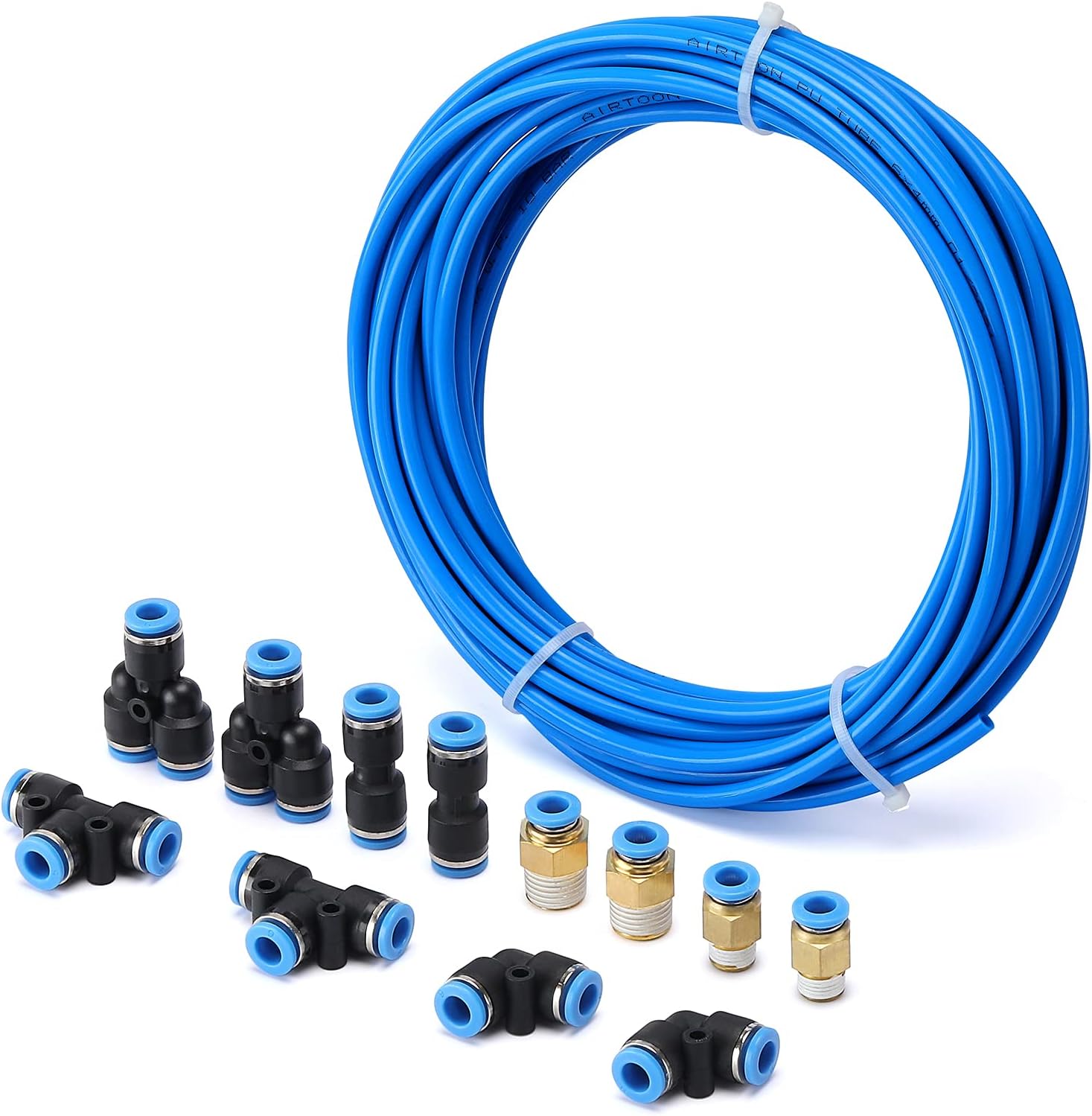

Push-fit / Quick-connect Fittings

Features:

• Tubing can be inserted directly without tools

• Allows fast assembly and disassembly

• Provides reliable sealing for low to medium pressure systems

Advantages:

• Fast installation and maintenance: Reduces downtime and improves production efficiency

• Easy to use: No specialized skills required

• Typical applications: Widely used with PU Tubing in automated production lines and robotic pneumatic systems

Threaded Fittings

Features:

• Tubing is secured via threaded connections

• High sealing performance and pressure resistance

• Can be used with sealing rings or thread sealant

Advantages:

• High reliability: Suitable for high-pressure or precision pneumatic systems

• Durable: Maintains connection integrity over long-term use

• Typical applications: Nylon Tubing in industrial pneumatic systems and small chemical tubing lines

Clamp / Hose Clamp Fittings

Features:

• Tubing is fixed using a clamp

• Easy to remove and reinstall

• Provides good sealing performance

Advantages:

• High flexibility: Suitable for systems that require frequent cleaning or tube replacement

• Cost-effective: Low installation cost, adaptable to various flexible tubes

• Typical applications: Polyolefin Tubing in food, beverage, and laboratory liquid transport

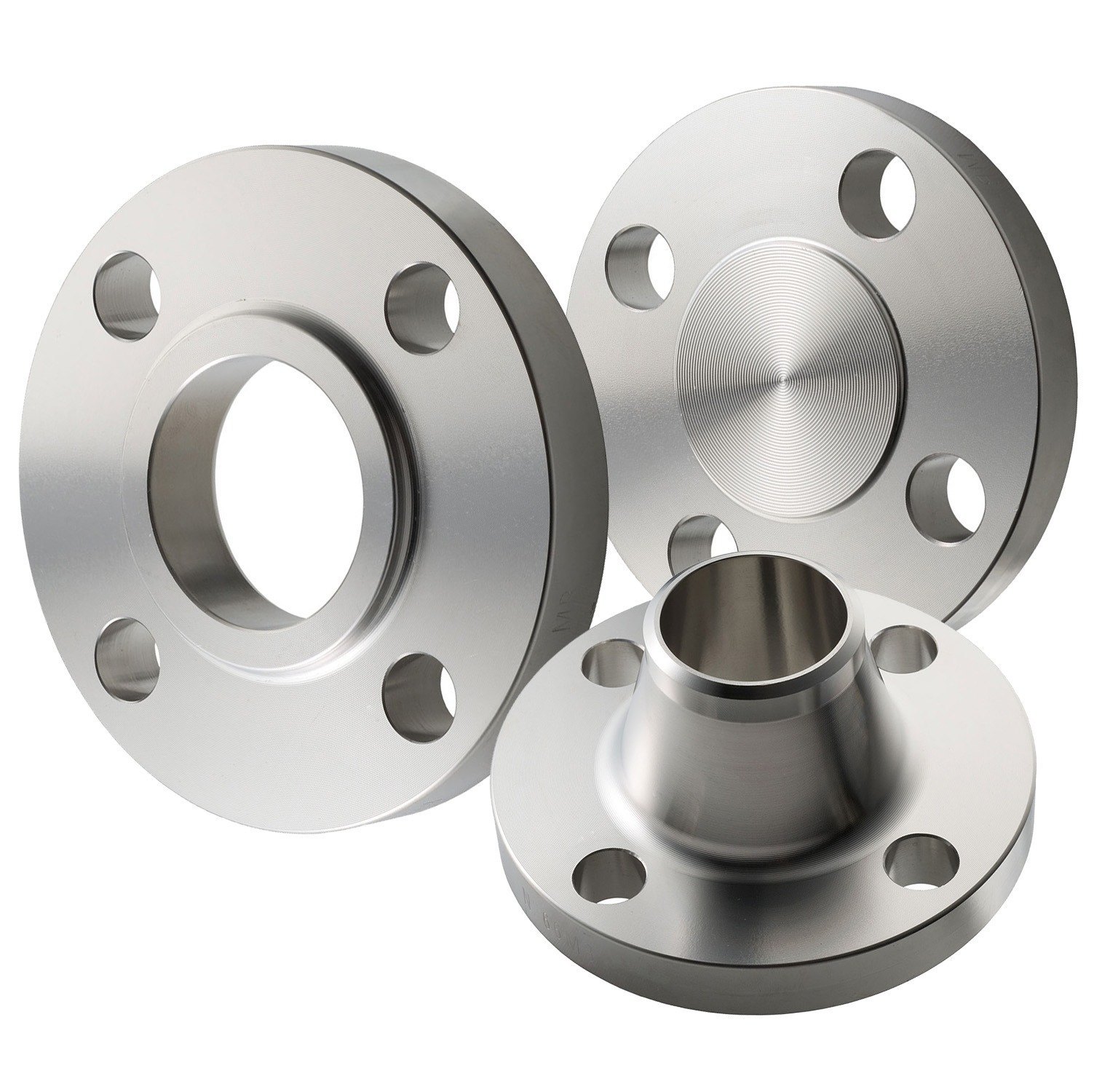

Flanged Fittings

Features:

• Tubing is connected via flanges and bolts

• Can withstand medium to high pressure, providing strong structural support

• Suitable for large-diameter or rigid piping systems

Advantages:

• Stable and reliable: Ideal for circulating water, cooling systems, and chemical pipelines

• Easy maintenance: Convenient for periodic inspection or equipment replacement

• Typical applications: PVC Tubing in industrial cooling water and drainage systems

Industrial Plumbing Case Studies

In the industrial field, plumbing involves not only traditional building water systems but also factory production lines, automated equipment, liquid transport, and industrial cleaning systems. Below are several typical tubing applications in industrial plumbing:

Polyurethane Tubing (PU Tubing)

Application Scenarios: Compressed air transport and liquid conveyance in automated production lines, pneumatic systems for industrial robots.

Characteristics: Good flexibility, wear-resistant, high pressure resistance.

Case Study: An automotive parts factory uses PU tubing to supply air to pneumatic fixtures and robotic end effectors. Paired with push-fit fittings, it allows for quick disassembly and maintenance, improving production efficiency.

Nylon Tubing

Application Scenarios: Industrial pneumatic systems, precision liquid transport, small chemical pipelines.

Characteristics: High-pressure resistance, chemical resistance, dimensional stability.

Case Study: An electronics assembly factory uses nylon tubing to deliver compressed air to assembly machinery. Each tube is secured with clamps to ensure stable pressure while minimizing leakage risk.

Polyolefin Tubing

Application Scenarios: Food processing, beverage transport, laboratory equipment.

Characteristics: Chemical resistance, temperature tolerance, medium flexibility.

Case Study: A beverage production line uses polyolefin tubing to transport liquids from mixing tanks to filling machines. The tubing is easy to clean, bendable, and ensures food safety while allowing convenient installation.

Polyvinyl Chloride Tubing

Application Scenarios: Cooling water systems, chemical liquid pipelines, factory drainage.

Characteristics: Corrosion-resistant, high strength, low installation cost.

Case Study: In an industrial cooling system, PVC tubing connects the cooling tower to the equipment’s circulating water lines. Using standard fittings and valves, it enables quick installation and maintenance while preventing leaks.

Tips for Proper Plumbing and Fitting Installation

Measure and cut pipes accurately

Dry-fit before permanent assembly

Apply sealants or Teflon tape where required

Test for leaks before full operation

Design and Installation Guidelines for Piping Systems

Layout: Use the shortest path, minimize bends, and ensure easy access for maintenance.

Pressure & Flow: Design to meet system pressure and flow requirements while staying within material limits.

Support & Fixing: Secure pipes with brackets or clamps, allow for thermal expansion, and prevent sagging or vibration.

Standards & Safety: Follow local and international codes, inspect materials before installation, and perform pressure and leak tests to ensure safe operation.

Plumbing and Fittings Mnaufacturer

We are a professional manufacturer of high-performance tubing systems and fittings, dedicated to providing reliable piping solutions for industrial automation, food and beverage, chemical, electronics, and other industries. Our main products include Polyurethane Tubing, Nylon Tubing, Polyolefin Tubing, and Polyvinyl Chloride Tubing.

Our company uses high-performance materials and advanced production processes, including precision extrusion, injection molding, CNC machining, and automated inspection, ensuring that every tube and fitting meets exact dimensional and quality standards. We can also customize special specifications, hardness levels, and fitting types according to customer requirements to meet complex system needs. Additionally, we maintain a complete supply chain system to respond quickly to customer orders and provide installation guidance and after-sales support.
