How to Install an Air Compressor Regulator

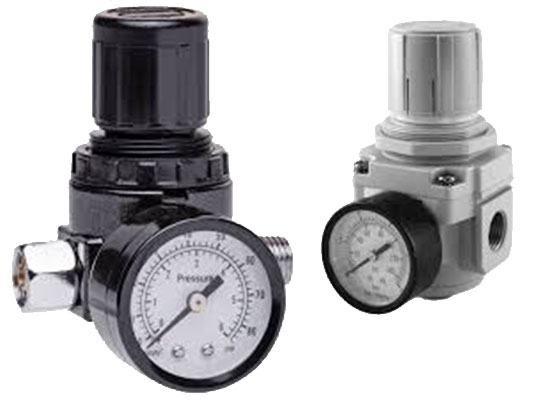

What is an air compressor regulator?

Air compressor regulator is a special type of valve with control and regulation functions installed in a pneumatic system to regulate and control the air pressure output from the air compressor. It can also be called an Air pressure regulator valve. The function of pressure regulator valve is to ensure that compressed air is delivered to the equipment or tools at a stable and appropriate pressure, thereby improving safety and efficiency of downstream pneumatic components, and preventing the pressure from being too high or too low.

Unlike the passive pressure relief of a safety valve, a pressure regulator valve can actively adjust the pressure delivered to downstream actuators according to the set value. This fully meets the industry's current demand for valves that work in real time, provide continuous regulation, and make adjustments before abnormal conditions occur.Next I will mainly introduce the installation method of this type of valve. You must understand.

How an air pressure regulator works?

An air pressure regulator works by automatically reducing and maintaining a constant output pressure from air compressor, Fluctuations not affected by input pressure.

Inlet:

Compressed air enters the regulator from the air compressor.

Adjustment Mechanism:

The user sets the desired output pressure by turning a knob or screw, which adjusts the preload of the internal spring.
This is the part where the air compressor pressure regulator adjustment is applied.

Diaphragm and Valve Coordination:

The diaphragm senses changes in the downstream (output) pressure.

• When the output pressure is too high, the diaphragm pushes the valve core to close or narrow the valve opening, reducing airflow.

• When the pressure is too low, the spring pushes the valve core open, increasing airflow to restore pressure.

Continuous Balancing:

The system continuously maintains the output pressure near the set value through this feedback-regulation process.Browse this article to learn more about how does the air pressure regulator work.

How to install air compressor regulator

Installing air compressor regulator correctly can effectively reduces the pressure of a high-pressure medium and continuously delivers a stable output.. Follow these steps to install it properly:

(1) Turn Off the Compressor and Release Pressure

Before starting, turn off the air compressor and unplug it from the power source.

Open the air drain valve or trigger a connected tool to release any built-up pressure.

This step ensures safety and prevents accidental discharge during installation.

(2) Remove the Old Regulator

◆ If you are replacing an existing regulator, use an adjustable wrench or spanner to loosen and remove it from the compressor outlet.

◆ Once removed, clean the threads on the compressor outlet to remove any dirt, debris, or old sealant to ensure a secure fit for the new regulator.

(3) Apply Teflon Tape or Thread Sealant

◆ Wrap Teflon tape around the male threads of the new regulator. This helps create an airtight seal and prevents air leaks.

◆ Ensure the tape is wrapped evenly and tightly around the threads. If using thread sealant, apply it evenly around the threads.

(4) Attach the New Regulator

◆ Hand-tighten the regulator onto the compressor outlet.

◆ Once the regulator is positioned correctly, use a wrench to tighten it securely.

Be careful not to overtighten, as this could damage the threads or the regulator body.

(5) Connect Hoses and Accessories

◆ Attach the air hose to the outlet port of the regulator valve.

◆ Ensure that the airflow direction is correct.

◆ If necessary, attach additional fittings or quick couplers for easier tool connection.

(6) Test the Installation

◆ Turn on the air compressor and allow it to pressurize.

◆ Slowly adjust the regulator knob to set the desired pressure level.

◆ Check for air leaks by applying soapy water to the connections. If bubbles form, tighten the fittings until the leak stops.

 Maintenance Tips of air compressor regulator

With regular maintenance, an air compressor regulator can maintain stable pressure, improve system efficiency, and reduce operating costs.

◆ Check for Leaks Regularly

Periodically inspect the regulator and connections for leaks. Tighten fittings if necessary.

◆ Keep the Regulator Clean

Dirt and debris can accumulate inside the regulator, affecting performance. Clean it regularly.

◆ Lubricate Moving Parts

Apply a small amount of lubricant to the adjustment knob and internal parts to prevent rust and ensure smooth operation.

◆ Monitor Pressure Levels

If the regulator is not holding pressure consistently, inspect and repair it immediately.

Air Compressor Regulator Solutions from Fokca

Fescolo offers a wide range of air compressor regulators to meet different system requirements. We provide high-quality pressure reducer regulator valves designed for precise pressure control and reliable performance. Our product range includes:

◆ Festo Series Filter Regulator Lubricator

Ensures clean, dry air while maintaining consistent pressure and lubricating the system for smooth operation.

◆ SMC Series Air Filter Regulator

Effectively removes moisture and contaminants while regulating air pressure for optimal tool performance.

◆ Airtac Series Air Filter Regulator

Combines filtration and pressure control to deliver stable airflow and protect pneumatic components.

◆ High Pressure Air Regulator

Designed to handle high-pressure applications, providing accurate and stable pressure output under demanding conditions.

Welcome to contact us for more details or to discuss your specific requirements.
