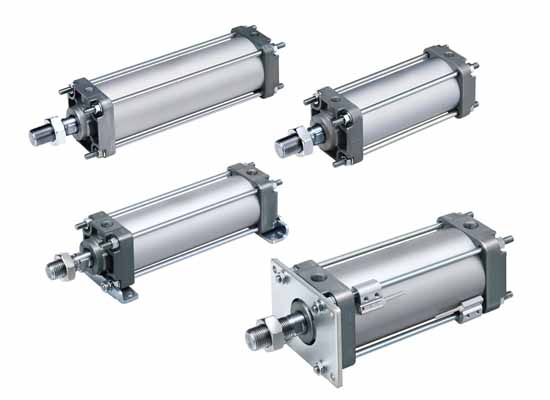

From a professional standpoint, if you are unfamiliar with the underlying principles of a mechanical device, it may often seem quite mysterious. While pneumatic cylinders might appear to operate like magic, they are actually based on fundamental mechanical principles. It is precisely this simplicity that grants them exceptional reliability. SMC is a globally renowned manufacturer of pneumatic products, dedicated to providing high-quality and reliable pneumatic components. SMC cylinders ensure long lifespan, high performance, and high stability in various industrial applications through strict quality control.
In fact, reliability is one of the most outstanding characteristics of pneumatic cylinders. With a simple internal structure and minimal moving parts,
they have an extremely low failure rate, maintaining stable performance even under prolonged and high-intensity operation.
Additionally, pneumatic cylinders offer high power transmission efficiency, enabling them to execute precise movements within a short time with rapid response speeds.
Compared to more complex mechanical systems, pneumatic cylinders are easy to install and maintain, allowing for quick integration into various demanding applications.
This significantly enhances the overall system efficiency, making them particularly popular in environments that require fast and efficient operation.
They are especially well-suited for automated production lines and precision machinery, where accuracy and speed are of paramount importance.
Here is the table of contents for this article：
◆ The Key Password For Cylinder Performance And Reliability: Air Cylinder Cushion Mechanism
◆ How Does A Pneumatic Air Cylinder Work
◆ How Much Air Does A Pneumatic Cylinder Use
The cylinder buffer mechanism is a device used to reduce the impact of the cylinder piston at the end of its stroke.
Its core purpose is to reduce the collision force between the piston and the cylinder end cover, thereby reducing mechanical impact,
vibration, and noise, and extending the service life of the equipment
When the cylinder piston approaches the end of its stroke, the buffer plunger will close the gas passage inside the cylinder,
compressing the gas at the end of the cylinder. At this point, the gas is slowly discharged through the throttle valve,
creating resistance and slowing down the movement speed of the piston. By adjusting the opening of the throttle valve,
the gas discharge speed can be controlled, thereby adjusting the buffering effect.
A pneumatic cylinder is essentially a mechanical device that generates linear reciprocating motion by utilizing the power of compressed gas.
Its working principle is very similar to that of steam pistons or other reciprocating motion designs. In fact, many people,
when looking at a diagram of a double-acting cylinder, often compare its operation to that of an internal combustion engine cylinder.
Similar to hydraulic cylinders, pneumatic cylinders use the pressure of compressed air to push a piston in a specific direction.
The piston itself is typically a small cylindrical component connected to a piston rod. The piston rod transmits the force applied to the piston to an external load,
thereby achieving mechanical movement. This simple force transmission method allows pneumatic cylinders to play a vital role in various applications.
Due to their relatively simple working principle, pneumatic cylinders generally have a long service life, especially in complex engineering systems.
Compared to many other similar devices, pneumatic cylinders have a simpler structure and fewer moving parts, resulting in a lower failure rate.
In some applications, pneumatic cylinders need to perform bidirectional motion. These cylinders use compressed air pressure to both extend and retract the piston rod,
and they are known as double-acting cylinders. Double-acting cylinders have two air ports—one for air intake during the extension of the piston rod and another for air intake during retraction.
Since the stroke length of the piston rod is theoretically unlimited, there is a risk of rod bending in long-stroke applications.
However, high-quality pneumatic component suppliers like SMC use premium materials and advanced designs to effectively reduce this risk,
ensuring that the cylinder can withstand continuous reciprocating motion reliably.
Beyond double-acting cylinders, various other types of pneumatic actuators have been developed over the years.
Although their designs may differ, they are all based on the same principle of compressed air-driven motion.
Through continuous innovation and optimization, pneumatic technology has been applied to almost every conceivable industrial scenario,
from simple automated production lines to complex robotic systems—making pneumatic cylinders an indispensable component in modern industry.
To fully understand how a pneumatic cylinder operates, it is essential to consider not only its working principle but also the amount of compressed air it consumes during operation.
The efficiency and performance of a pneumatic cylinder depend heavily on air consumption, as this directly affects energy usage, operational cost, and system efficiency.
By analyzing air consumption, engineers can optimize pneumatic systems to ensure smooth operation while minimizing waste and energy loss.
First, we must gather some basic information about your pneumatic cylinder so we can calculate the air consumption:
Piston Area (Bore x 3.1415)
Rod Area (for double-acting cylinders)
Stroke
Cycles per minute
Calculating the air consumption for a single-acting cylinder is a rather easy calculation,
but it is important to understand that the required air flow is dependent not only on the bore area and stroke, but also the cycle rate of the pneumatic cylinder.
The formula for the air consumption of a single-acting
cylinder is as follows:
A = Piston Area (Square Inches)
S = Stroke (Inches)
C = Cycles per Minute
CFM (Cubic Feet per Minute) = (A x S x C) / 1728
In certain applications, the double-acting cylinder may be required to extend and retract at a different rate. Obviously, this changes our calculation of the air consumption.
In this situation, the air consumption of each stroke must be calculated separately as follows:
EC = Extend cycles per minute (ignoring dwell time)
RC = Retract cycles per minute (ignoring dwell time)
CFM = (A x S x EC) / 1728 + [(A – R) x S x RC] / 1728
The double-acting cylinder may be required to extend and retract at a different rate. Obviously, this changes our calculation of the air consumption.
In this situation, the air consumption of each stroke must be calculated separately as follows:
EC = Extend cycles per minute (ignoring dwell time)
RC = Retract cycles per minute (ignoring dwell time)
CFM = (A x S x EC) / 1728 + [(A – R) x S x RC] / 1728
The amount of air consumption in a pneumatic cylinder is a key factor in determining its efficiency and operational cost.
Air consumption depends on several factors, including cylinder size, stroke length, operating pressure, and cycle rate.
By accurately calculating and optimizing air usage, engineers can enhance system performance, reduce energy costs, and improve overall efficiency.
Proper maintenance and the use of high-quality components further contribute to minimizing air waste and ensuring reliable, long-term operation.

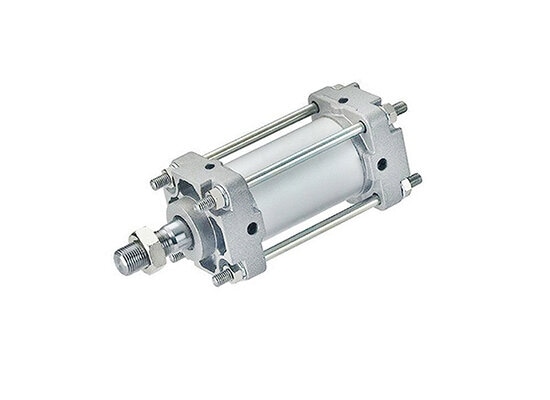

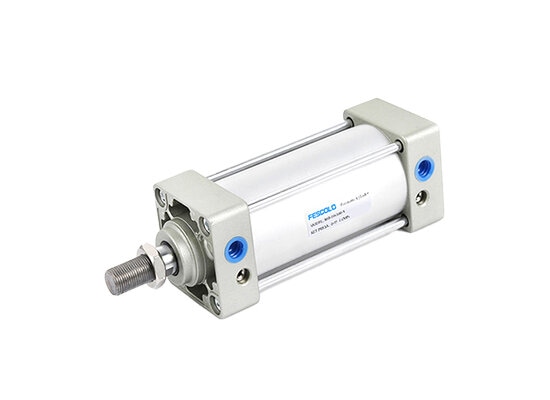

As a professional air cylinder manufacturer with over a decade of expertise, Fokca leverages strong R&D and production capabilities
to provide a full range of custom air cylinder solutions.

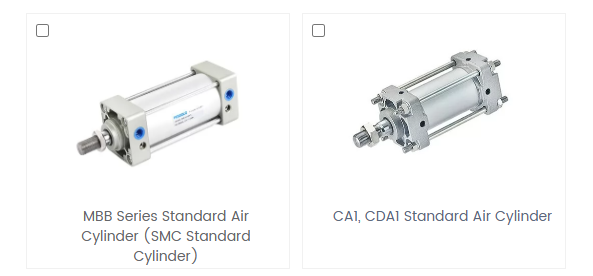

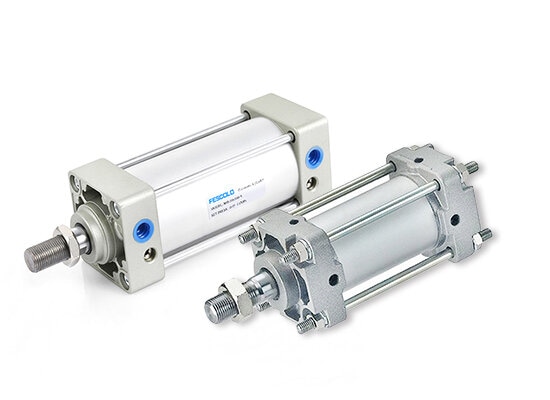

Our product portfolio covers Single-Acting Cylinders, Double-Acting Cylinders, Rodless Cylinders,
