Full Analysis of Dual Rod Guided Air Cylinders Products

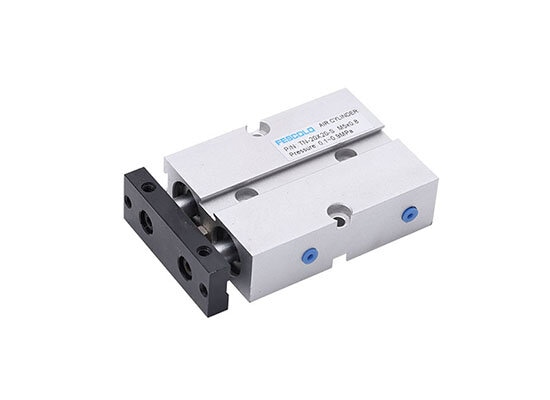

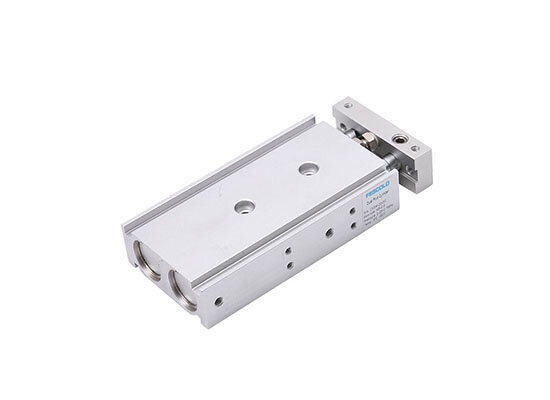

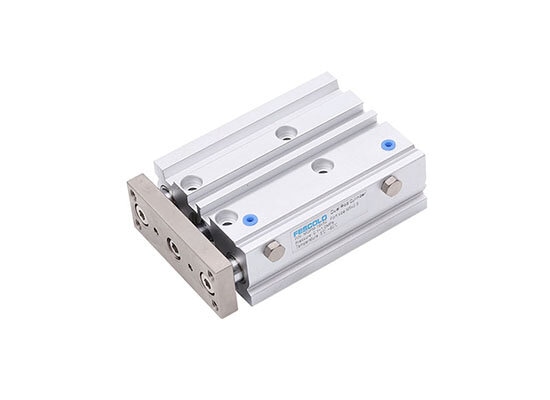

Definition of Dual Rod Guided Air Cylinders

Guided Air Cylinders are pneumatic actuators that achieve high-precision anti-deflection and stable linear motion through a dual-rod structure. Their core design features symmetrically arranged guide rods on both sides of the piston, enabling stable, rotation-free linear reciprocating motion when combined with pneumatic actuation.

Classification of Dual Rod Guided Air Cylinders

Based on structural differences, Guided Air Cylinders can be categorized into:

Standard Dual Rod Cylinders: The guide rods are rigidly connected to the piston, suitable for general positioning applications.

Compact Dual Rod Cylinders: Feature a shortened body for optimized space utilization.

Anti-Rotation Dual Rod Cylinders: Utilize specialized guide rod and cylinder body coordination to eliminate piston rotation.

Features and Advantages of Dual Rod Guided Air Cylinders

Ultra-High Precision and Stability: The dual-rod structure can withstand lateral forces up to 6 times that of standard cylinders, eliminating deflection issues common in single-rod designs.

Strong Anti-Interference Capability: Guide rods and cylinder bodies employ sliding or ball bearings with friction coefficients as low as 0.05, making them suitable for high-speed or high-frequency operations.

Modularity and Integration: Support multi-directional mounting (top, bottom, side) and are compatible with accessories like magnetic switches and displacement sensors. Optional configurations include adjustable strokes, locking mechanisms, and corrosion-resistant coatings.

Functions of Dual Rod Guided Air Cylinders

Precision Positioning: Dual rods restrict piston rotation, achieving ±0.05mm repeatability.

Heavy-Duty Push/Pull: Dual rods distribute loads, doubling the thrust of conventional cylinders.

Shock Absorption: Built-in rubber or pneumatic cushioning reduces mechanical impact.

Enhanced Thrust: Some dual-rod cylinders feature two compressed air chambers to amplify external thrust on the piston rod.

Typical Applications of Dual Rod Guided Air Cylinders

Automated Production Lines: Automotive component assembly, electronic part insertion.

Packaging Machinery: Material pushing, sealing, labeling.

Collaborative Robotics: Driving gripper actuation for flexible grasping.

Logistics Sorting: Actuating flaps or stoppers for package routing.

How to Enhance the Anti-Moment Capability of Dual Rod Guided Air Cylinders

Dual-rod cylinders significantly improve anti-moment performance through three key mechanisms:

Force Distribution: The dual rods and piston rod form a stable three-point support structure, dispersing eccentric loads into multi-directional forces to avoid stress concentration.

Rigidity Reinforcement: Hard-chrome-plated, thickened guide rods and precision-ground mating surfaces increase bending stiffness to 3–5 times that of single-rod cylinders, effectively suppressing deflection.

Dynamic Balance: Symmetrical layout creates a force-coupling effect, where one rod compresses and the other tensions, actively counteracting tilting moments like crane outriggers.

This design ensures motion accuracy under eccentric loads while extending the lifespan of seals and guiding components, making it ideal for high-side-load or long-stroke applications.

Summary

Dual Rod Guided Air Cylinders, with their high precision, stability, and anti-interference capabilities, have become the preferred choice for precision linear motion control in automation. Selection should consider load, speed, and environmental conditions, prioritizing suppliers with localized technical support to reduce total cost of ownership.

FAQ

Q1: My equipment needs to handle a 20kg eccentric load with a 150mm stroke. Which model would meet this requirement?

A: Assuming an eccentric distance of 50mm, the moment = 20kg × 9.8m/s² × 0.05m = 9.8N·m. Select a model with an allowable moment ≥15N·m. Options include:

• SMC MXQ16-50D: 16mm bore, 18N·m moment.

• Festo DGC-16-150-G-PPV: 16mm bore, 20N·m moment.

• Airtac SDA-16×150-C: 16mm bore, 16N·m moment.

Q2: Is additional protection needed for dual-rod cylinders in dusty environments?

A: Dust accelerates wear on guide rods and seals and may clog valves. Choose models with IP65 or higher ratings and consider adding protective bellows.

Q3: Can you provide models with built-in magnetic rings and adjustable cushioning?

A: Yes, all our guided cylinder types include standard magnetic rings and adjustable cushioning. Custom configurations are also available.
