Why is Pneumatic Auto Drain Valve so important to pneumatic system?

A pneumatic auto drain valve is a drainage device used in compressed air systems. It automatically discharges the condensed water, oil, and impurities that accumulate within air system components, keeping the system dry and clean.During the compression and cooling process, compressed air generates a large amount of moisture and oil mist. If not removed in time, this can lead to:

● Corrosion or sticking of key pneumatic components such as cylinders and solenoid valves

● Water accumulation in pipelines, affecting air pressure stability

● Blockage and reduced lifespan of filters and regulators

Therefore, the compressed air auto drain valve plays a crucial role in maintaining the efficiency and reliability of a pneumatic system.

Which pneumatic components does the Auto Drain Valve work on?

The automatic drain valve is mainly used in compressed air treatment systems and components driven by compressed air, such as:

Air Compressor:Automatically and promptly discharges the condensate accumulated in the air receiver tank after compression, preventing corrosion of the tank.

Air Filter / FRL Unit:Timely removes the water collected on the filter element or separator wall, keeping the filter element dry and ensuring the dryness of the compressed air, thereby improving filtration efficiency.

Oil-Water Separator:Also a key part of the air preparation system, it prevents the accumulation of mixed oil and water, ensuring clean and pure air supply.

Refrigerated Air Dryer:The automatic drain valve is used to discharge condensate, maintaining the output of dry compressed air.

The working principle of auto drain valve

A pneumatic auto drain valve is typically installed at the bottom of air filters, air receiver tanks, refrigerated air dryers, or oil-water separators. The drain valve operates automatically through either a float mechanism or an electromagnetic control system to discharge condensate.

In pneumatic systems, the most commonly used auto drain valves are available in two types of actuation: mechanical (float type) and electrical (solenoid/timer type).

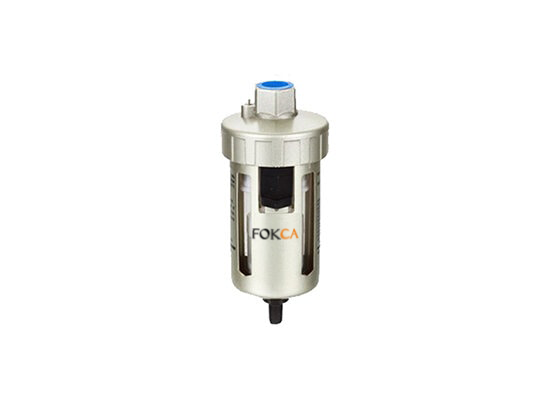

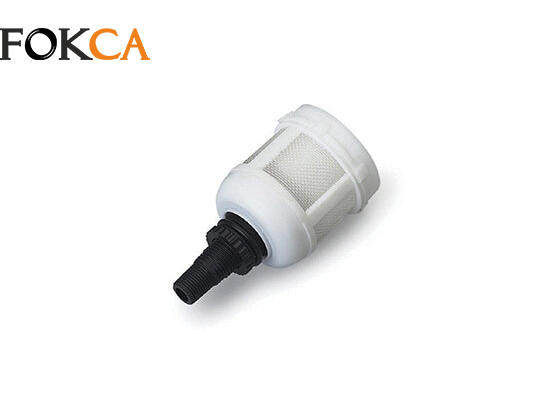

Mechanical Auto Drain Valve

This type of auto drain valve operates based on the float principle. When the condensate level rises to a certain height, the float lifts and opens the drain port. After the water is discharged and the level drops, the valve automatically closes.

Features:

No external power required;

Simple structure with high reliability;

Easy to maintain, but not suitable for heavily contaminated or high-pressure systems.

Large capacity

have a transparent window for visually checking the liquid level

Applications:
Air filters, oil-water separators, and air receiver tanks.

Electronic Auto Drain Valve

Working Principle:
This type of auto drain valve consists mainly of a solenoid valve and a timer controller. It automatically opens at preset intervals to discharge condensate for a specific duration, then closes automatically.

Features:

Adjustable drainage interval and discharge duration;

Complete and efficient drainage, suitable for all types of compressed air systems;

Requires electrical power supply.

Applications:
Refrigerated air dryers, air compressors, and main pipeline systems in continuous operation.

The main functions and advantages of using auto drain valve in pneumatic system

Automatically drains condensate:The drain port automatically opens when the condensate reaches a certain level, and automatically closes after the water is discharged.

Prevents damage to pneumatic components:Drain condensed water in time to avoid damage and rust of pneumatic components.

Improves air quality:Improve the air quality of the air source and ensure stable output of the actuator.

Reduces maintenance costs:Reduce the problem of rust or damage to air source components due to condensation.

Extends system life:Reduce the maintenance and care of pneumatic components and ensure the smooth and efficient operation of the pneumatic system.

Use auto drain valve to help your air source treatment unit

The Pneumatic Auto Drain Valve is commonly used as filter accessories in air source processing units component in pneumatic systems that should not be overlooked. By automatically discharging condensate and impurities, it effectively improves the quality of compressed air and prevents the system from moisture and corrosion. Whether in a small FRL unit or a large air compressor station, properly configuring an automatic drain valve is a key measure to ensure long-term stable operation of the equipment.

You can browse our pneumatic products on our website to view online traffic, or contact us directly to get the latest quotation.
