Characteristic
◆ Resists to solvents,oils,greases,and petroleum products
◆ Excellent flexibility than PA12 tube
◆ Long working life
◆ Precise size and wall uniform
◆ Applicable to auto oils pipes,volatile solvent delivery pipes
Specification
| Material | Nylon 11(Polyamide) |
| Applicable medium | Air, Water, Oil, Normal solvents,Vacuum |
| Embient and fluid temperature | -40℃~+90℃ |
| Hardness Shore D | 60D |

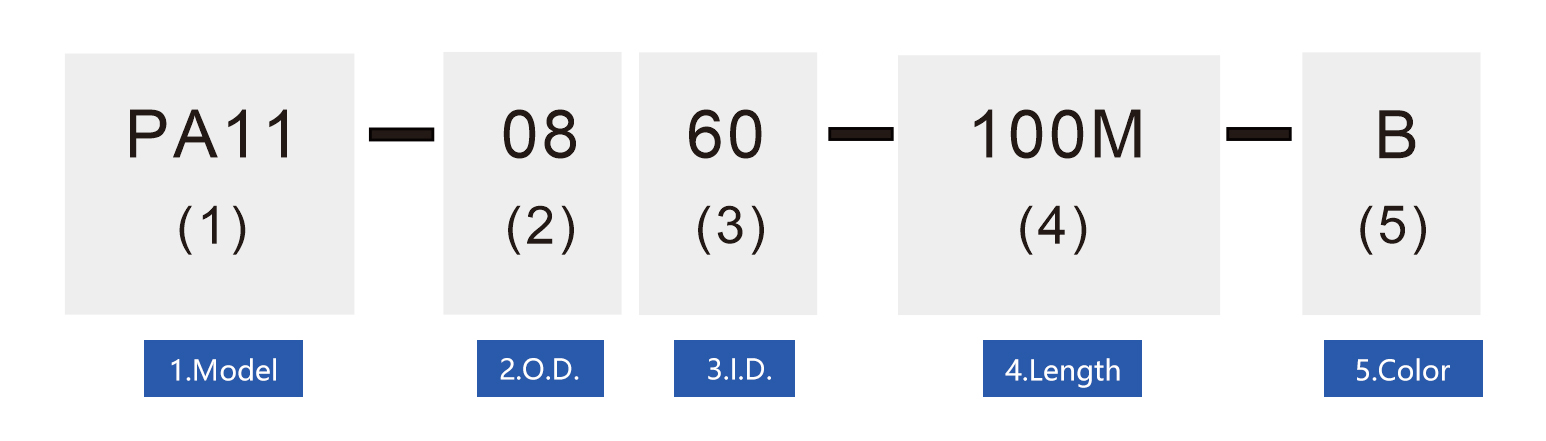

Ordering code

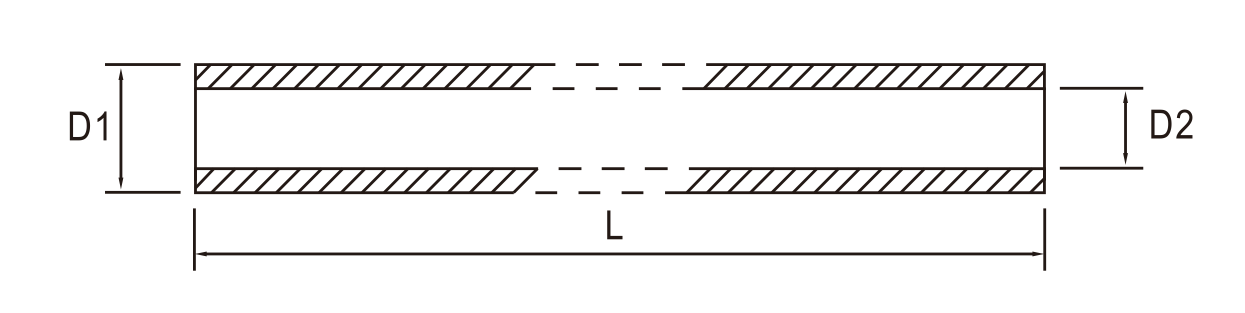

ITEM | D1 | D2 | L | Net weight（kg/Roll） | MAX.workingpressureat 20℃（bar） | Burst.workingpressureat 20℃（bar） | MAX.bendradiusat 20℃（mm） |
| PA11-0425 | 4mm | 2.5mm | 200m | 1.6 | 20bar | 60bar | 15mm |
| PA11-0640 | 6mm | 4mm | 200m | 3.3 | 20bar | 60bar | 20mm |
| PA11-0860 | 8mm | 6mm | 100m | 2.3 | 20bar | 60bar | 30mm |
| PA11-1080 | 10mm | 8mm | 100m | 3 | 15bar | 60bar | 45mm |
| PA11-1075 | 10mm | 7.5mm | 100m | 3.6 | 20bar | 60bar | 40mm |
| PA11-1210 | 12mm | 10mm | 100m | 3.6 | 15bar | 60bar | 55mm |
| PA11-1290 | 12mm | 9mm | 100m | 5.2 | 20bar | 60bar | 50mm |
| PA11-1/4 | 6.35mm | 4.2mm | 200m | 3.8 | 20bar | 60bar | 25mm |
| PA11-3/8 | 9.5mm | 6.35mm | 100m | 4 | 20bar | 60bar | 40mm |
| PA11-1/2 | 12.7mm | 9.6mm | 100m | 5.7 | 20bar | 60bar | 50mm |
