Applicable
◆ In spark environment such as spot welding
◆ General air pressure and water piping
◆ Flame retardant grade V0(UL94)
Specification

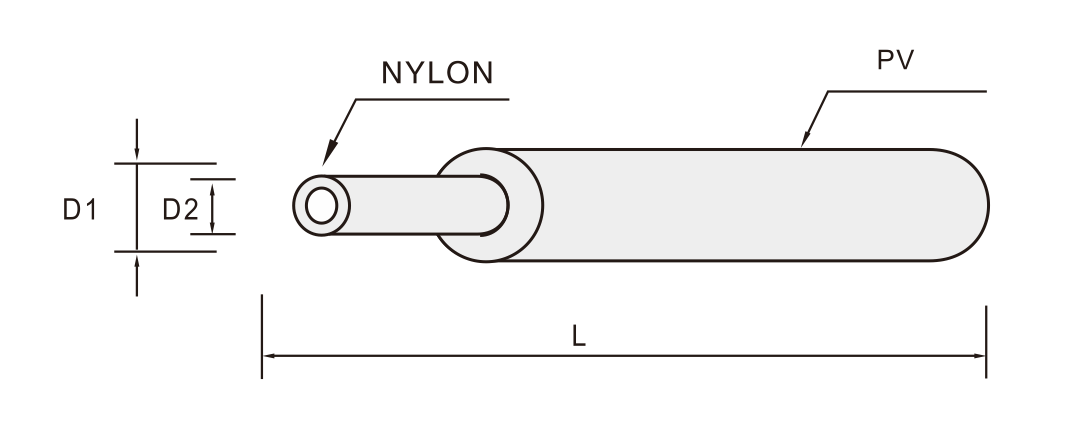

| Material | Nylon(inner)+Flame retardant composite(outer) |
| Applicable medium | Air, Water, Solvents, Chemicals. |
| Embient and fluid temperature | -40℃~+100℃ |
| Hardness Shore D | 64D |
Ordering code
ITEM | D1 | D2 | L | Net weight（kg/Roll） | MAX.workingpressureat 20℃（bar） | Burst.workingpressureat 20℃（bar） | MAX.bendradiusat 20℃（mm） |
| PA11-0604 | 6mm | 4mm | 100m | 4.5 | 30bar | 90bar | 20mm |
| PA11-0806 | 8mm | 6mm | 100m | 6.1 | 20bar | 60bar | 30mm |
| PA11-1008 | 10mm | 8mm | 100m | 7.6 | 20bar | 60bar | 45mm |
| PA11-1209 | 12mm | 9mm | 100m | 10.8 | 20bar | 60bar | 50mm |
