Characteristic
◆ Excellent resistance to strong acid and bases
◆ Excellent resistance to high and low temperature
◆ Good chemical resistance stability
◆ Maintains elasticity under low temperature
Specification
| Material | Polytetrafluoro Ethylene |
| Applicable medium | Strong acid, Strong bases, Oil |
| Embient and fluid temperature | -80℃~+260℃ |

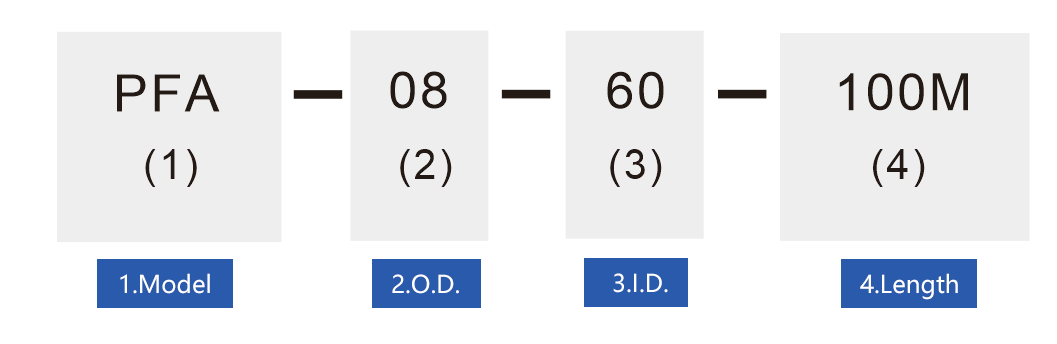

Ordering code
ITEM | D1 | D2 | L | Net weight（kg/Roll） | Max.workingpressureat 20℃（bar） | Max.Burstpressureat 20℃（bar） |
| PFA-0420 | 4mm | 2mm | 200m | 4.3 | 28bar | 84bar |
| PFA-0640 | 6mm | 4mm | 200m | 7.2 | 18bar | 54bar |
| PFA-0860 | 8mm | 6mm | 100m | 5 | 12bar | 36bar |
| PFA-1080 | 10mm | 8mm | 100m | 6.5 | 8bar | 24bar |
| PFA-1/4 | 6.35mm | 4.23mm | 100m | 3.4 | 18bar | 54bar |
