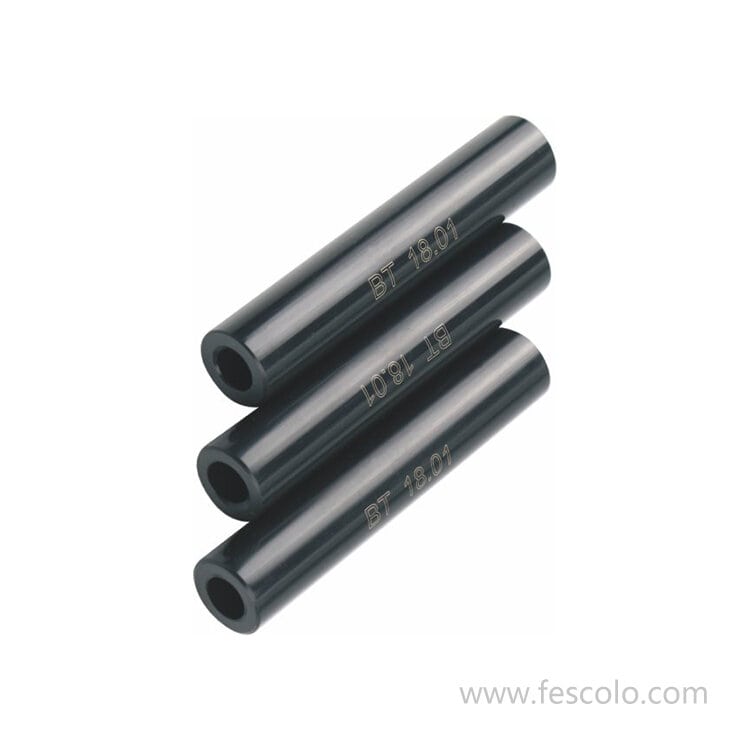

PA66 Nylon Tube

PA66 Nylon Tube


Characteristic

 High temperature resistance

 Resists abrasion and impact

 High mechanics performance

 Precise size and wall uniform

 Long working life


Inquire Now
  • Dimension
  • Details

Characteristic


 High temperature resistance

 Resists abrasion and impact

 High mechanics performance

 Precise size and wall uniform

 Long working life





Specification


MaterialNylon 66 (PA66)
Applicable medium

Air, Water, Oil, Normal

    solvents,Vacuum

Embient and fluid temperature-40℃~+150℃
Hardness Shore D 70D

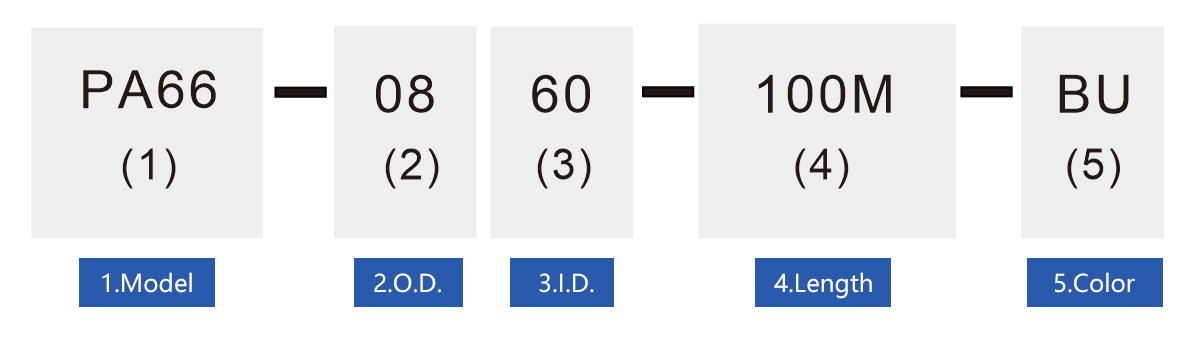

Ordering code


PUSC Electro-static Coating Tube




PA11 Nylon Tube








 ITEM

D1

D2

 L

 Net weight

(kg/Roll)

MAX.working

pressure

  at 20℃(bar)

Burst.working

pressure

at 20℃(bar)

  MAX.bend

radius

 at 20℃(mm)

PA66-0425
4mm
2.5mm200m1.620bar
60bar15mm
PA66-0640
6mm
4mm200m3.320bar
60bar20mm
PA66-0860
8mm
6mm100m2.320bar
60bar30mm
PA66-1080
10mm
8mm100m315bar
60bar45mm
PA66-1075
10mm
7.5mm100m3.620bar
60bar40mm
PA66-1210
12mm
10mm100m3.615bar
60bar55mm
PA66-1290
12mm
9mm100m5.220bar
60bar50mm
PA66-1/4
6.35mm
4.2mm200m3.820bar
60bar25mm
PA66-3/8
9.5mm
6.35mm100m420bar
60bar40mm
PA66-1/2
12.7mm
9.6mm100m5.720bar
60bar50mm
