BR20-SF-02S Steel British type quick coupling

BR20-SF-02S Steel British type quick coupling


Features:

 BR20 series British manual-operated quick couplings can be interchanged with PCL 60 series, Parker-Rectus 19 series.

 Single shut off. Manual-operated structure needs two hands to connect.

 Compatible with all Parker 19 series nipples or plugs. Both coupler and plug has a long stem, not easy to come off. It is safe and reliable.

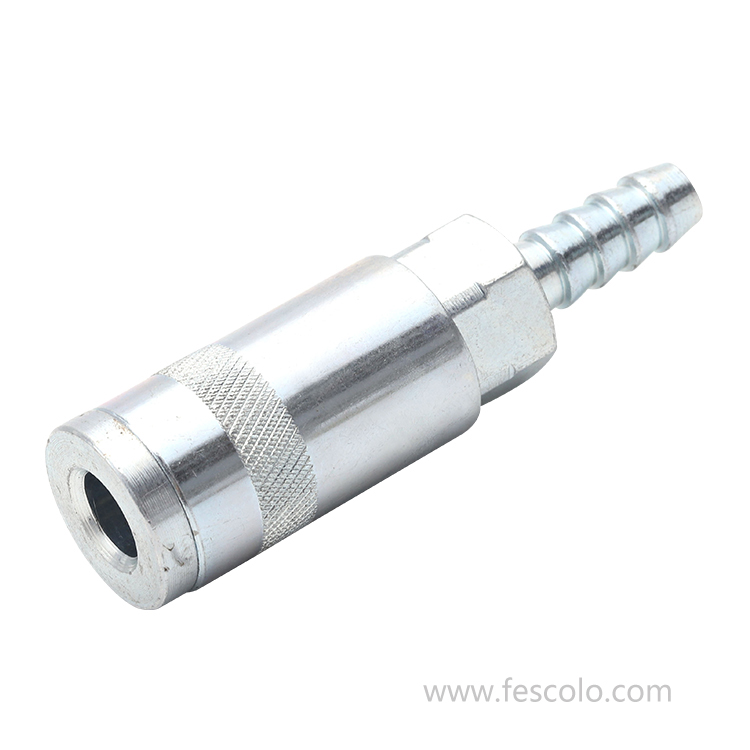

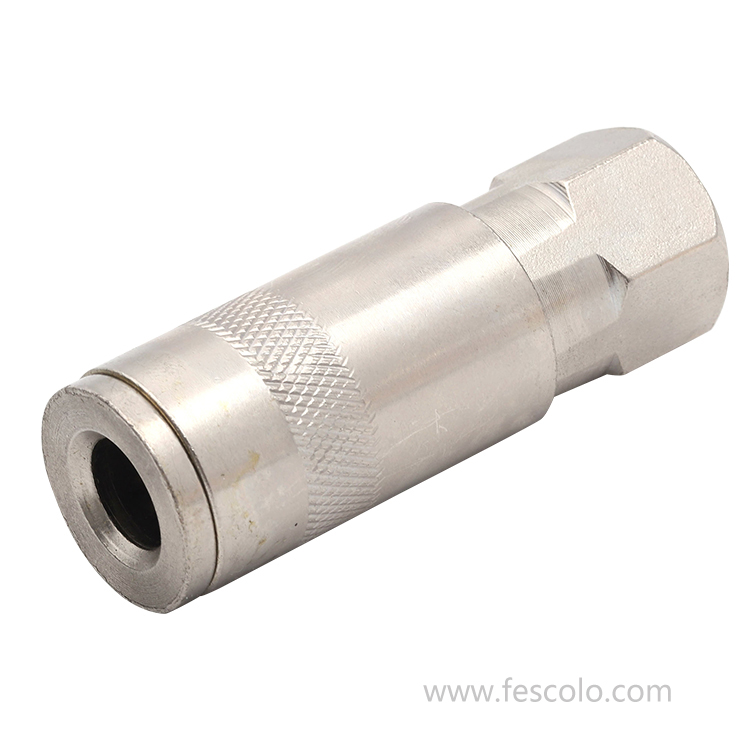

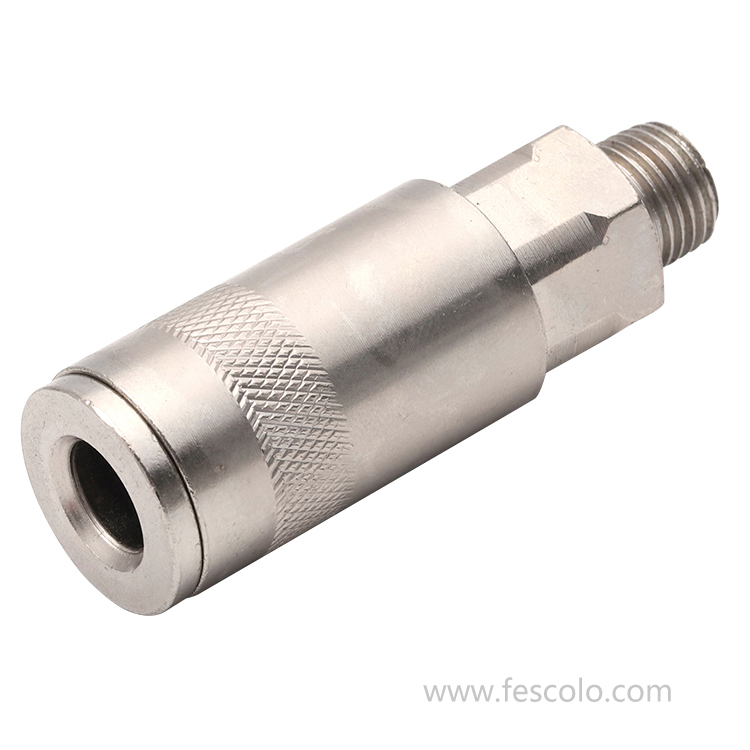

 The body, sleeve, and nipples or plugs are usually made of carbon steel with zinc or nickel-plated. It is equipped with 4 stainless steel locking balls. The couplers are mainly divided into three types: female thread, male thread, and hose barb tail.

 The Maximum working pressure is 2.0MPa, which belongs to the medium pressure type in the pneumatic quick couplings.

 The commonly used sealing material is NBR, in addition, FKM fluorine rubber, EPDM and other sealing materials are available.

 Generally applications include: air compressors, pneumatic tools, lawn mowers, spraying and other industries.


Inquire Now

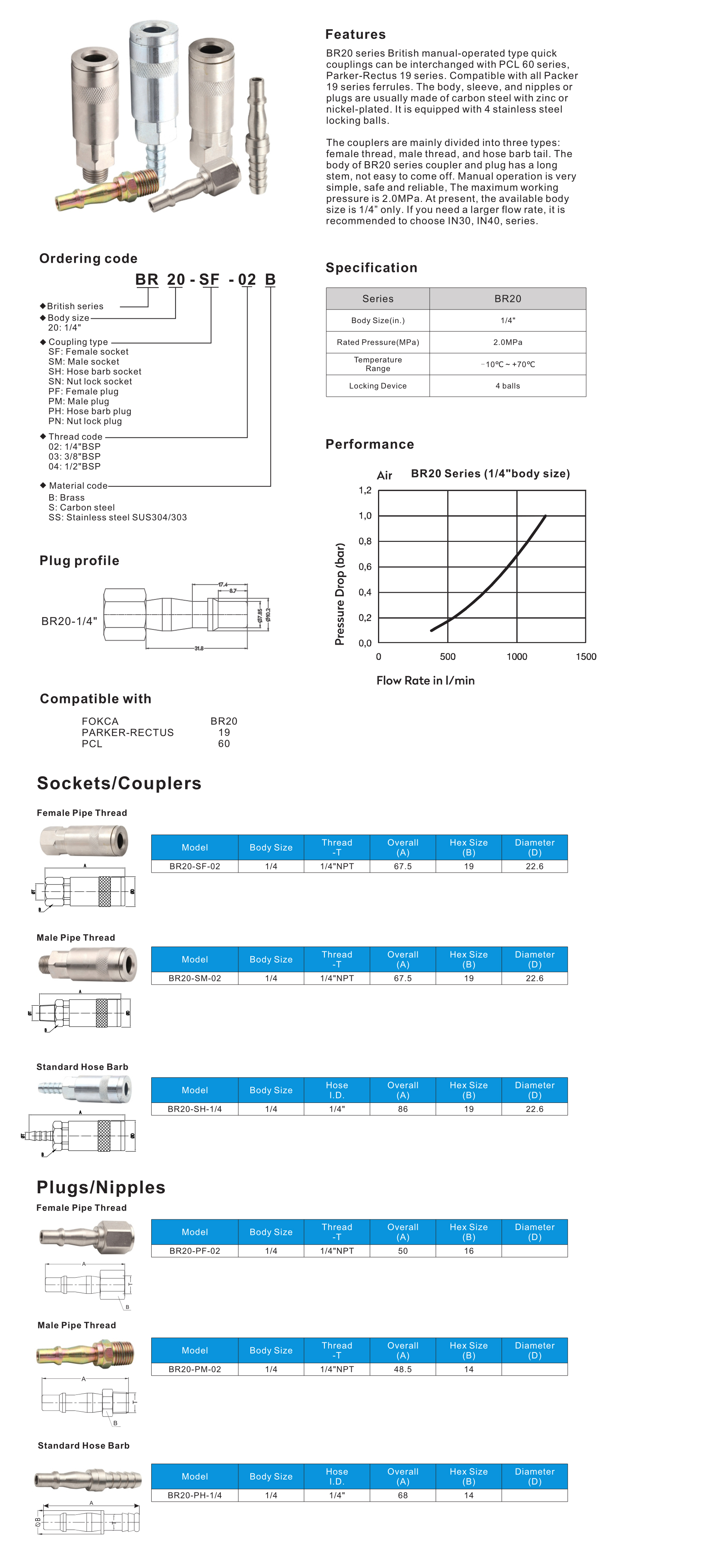

  • Dimension
  • Details

BR20-SF-02S Steel British type quick coupling

BR20 series British manual-operated type quick couplings can be interchanged with PCL 60 series, Parker-Rectus 19 series. Compatible with all Packer 19 series ferrules. The body, sleeve, and nipples or plugs are usually made of carbon steel with zinc or nickel-plated. It is equipped with 4 stainless steel locking balls.



The couplers are mainly divided into three types: female thread, male thread, and hose barb tail. The body of BR20 series coupler and plug has a long stem, not easy to come off. Manual operation is very simple, safe and reliable, The maximum working pressure is 2.0MPa. At present, the available body size is 1/4” only. If you need a larger flow rate, it is recommended to choose IN30, IN40, series.


BR20-SF-02S Steel British type quick coupling

BR20-SF-02S Steel British type quick coupling

BR20-SF-02S Steel British type quick coupling
