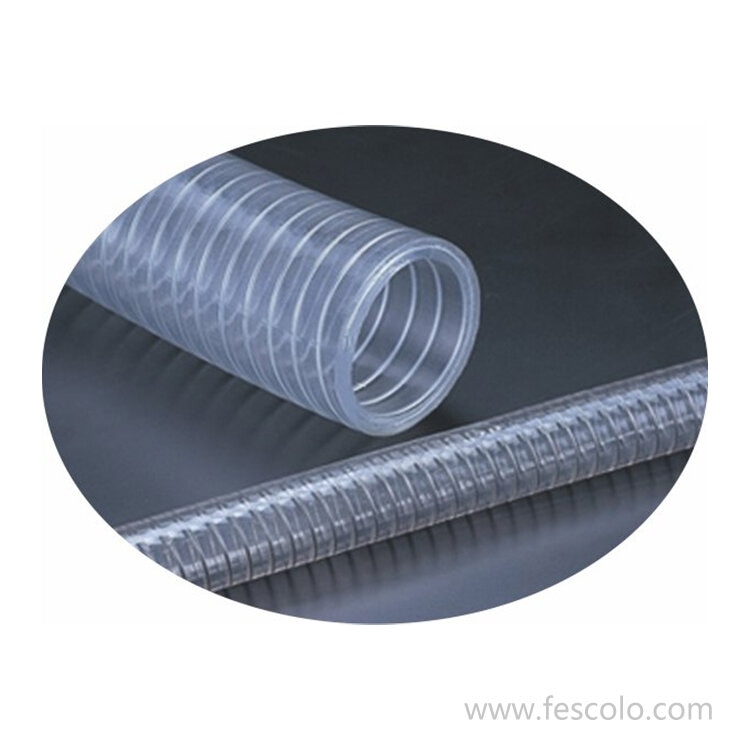

SWR Hose(PVC Flexible Tubing)

SWR Hose(PVC Flexible Tubing)


Characteristic


 Reinforced with spiral steel wire

 Smooth inner surface

 Wear-resistant and bending-resistant

 Applicable for conveying particels, such as dust,powder fibers chips



What is Steelwire Reinforced Hose?


As PVC flexible tubing is increasingly used across various industries, its limitations have also become more apparent. For example, its flexibility decreases in low-temperature environments, and prolonged, frequent bending can lead to fatigue and cracking—especially under high loads or with tight bending radii. Standard, non-reinforced PVC tubing is not suitable for high-pressure systems, as it is prone to collapsing or bursting.


Steelwire Reinforced Hose is a flexible hose that contains a spiral steel wire embedded within its structure. This steel wire reinforcement pvc tubing provides enhanced strength, allowing the hose to withstand higher pressures and resist collapsing under vacuum or bending. Other common base materials for steel wire reinforced hoses include PU (polyurethane), and rubber.These bendy hoses are commonly used for transferring water, air, oil, and various chemicals in industrial, agricultural, and construction applications due to their durability, flexibility, and resistance to kinking.



Advantages and Disadvantages compare common pvc tube


Enhancement point


Steelwire bendy reinforced pipes have higher pressure resistance and vacuum resistance, enabling them to withstand medium to high pressure and negative pressure environments. They also offer enhanced tensile and impact resistance, extending their service life. Their structure prevents kinking and collapse during repeated bending, maintaining smooth flow. The spiral steel wire compression increases the rigidity of the hose wall and improves wear resistance, making them suitable for various demanding conditions.


Shortcomings


Although steel wire reinforced hoses offer excellent pressure and vacuum resistance, they also have some drawbacks. Their flexibility is relatively poor, with a larger minimum bending radius, making them unsuitable for tight spaces or frequent sharp bends. The steel wire structure increases the overall weight, making handling and installation more labor-intensive and requiring stronger support systems. Additionally, the manufacturing cost is higher, leading to increased maintenance expenses. The steel reinforcement can also hinder internal cleaning efficiency, especially when transporting high-viscosity media or in applications requiring frequent sanitation. If the steel wire is not properly treated for corrosion resistance, it may rust in humid or chemical environments, reducing the hose's service life.



Apication of Steelwire Reinforce Hose


 Industrial Fluid Transfer


◆ Construction and Civil Engineering


◆ Agriculture


◆ Chemical Industry


◆ Vacuum and Suction Systems


◆ Food and Beverage


◆ Oil & Fuel Handling











Inquire Now
  • Dimension
  • Details

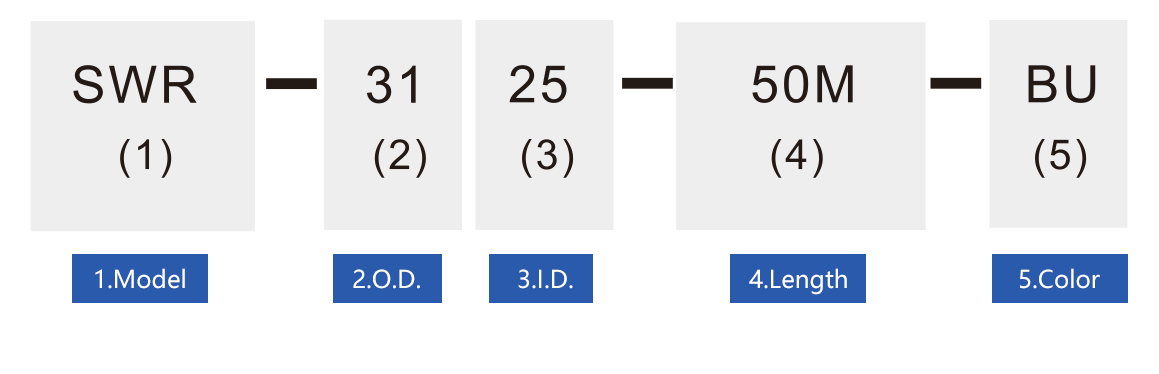

Flexible PVC Pipe Ordering code


SWR Hose(PU Steel Wire Reinforced Hose)






 ITEM

D1

D2

 L

 Inch

Max.working

pressure

  at 20℃(bar)

Max.Burst

pressure

at 20℃(bar)

SWR
31mm
25mm50m1.07bar
21bar
SWR38mm
32mm50m1-1/47bar
21bar
SWR45mm
38mm40m1-1/27bar
21bar
SWR57mm
50mm40m2.06bar
18bar
SWR64mm
57mm20m2-1/26bar
18bar
SWR85mm75mm20m3.05bar15bar
