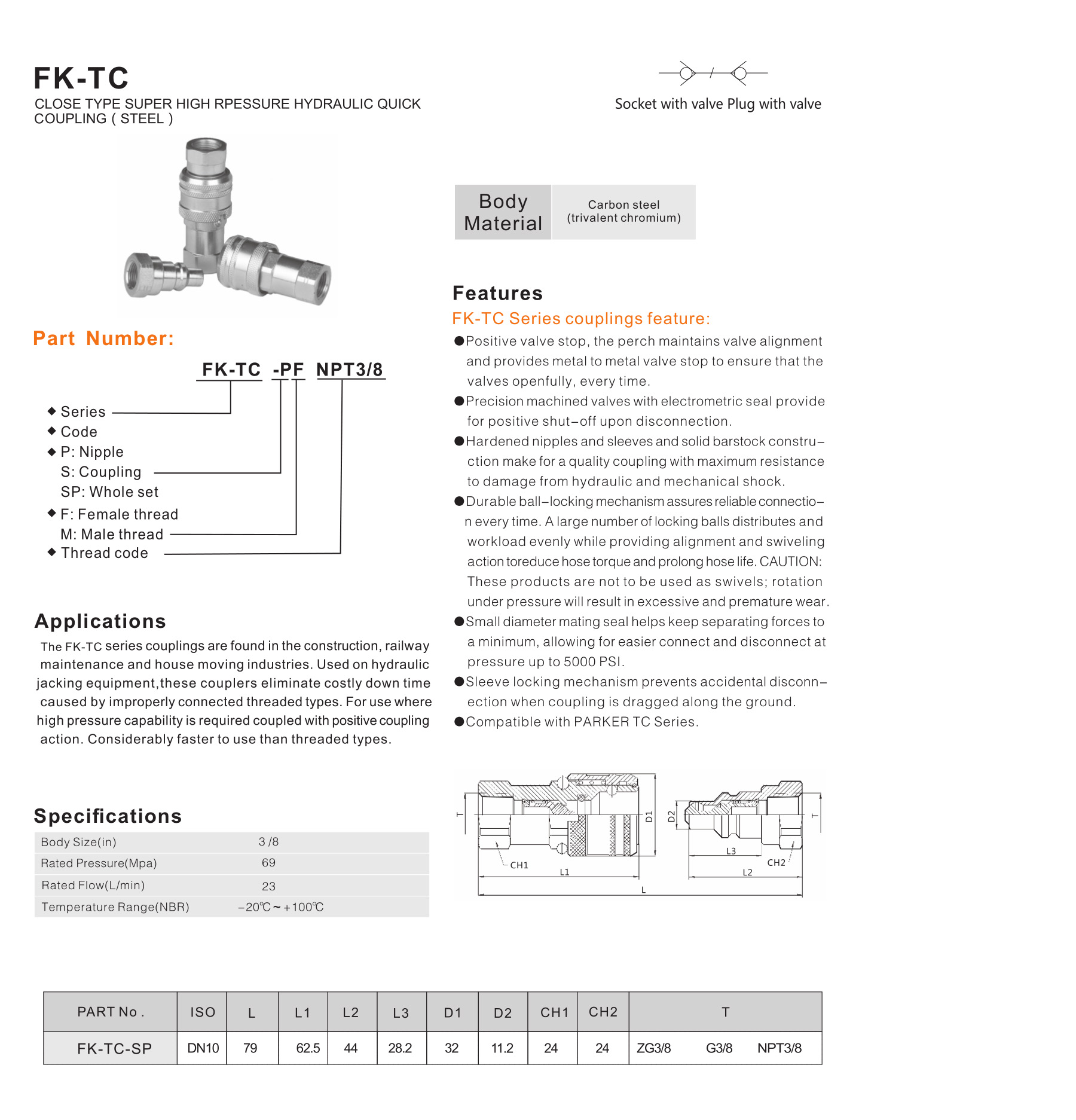

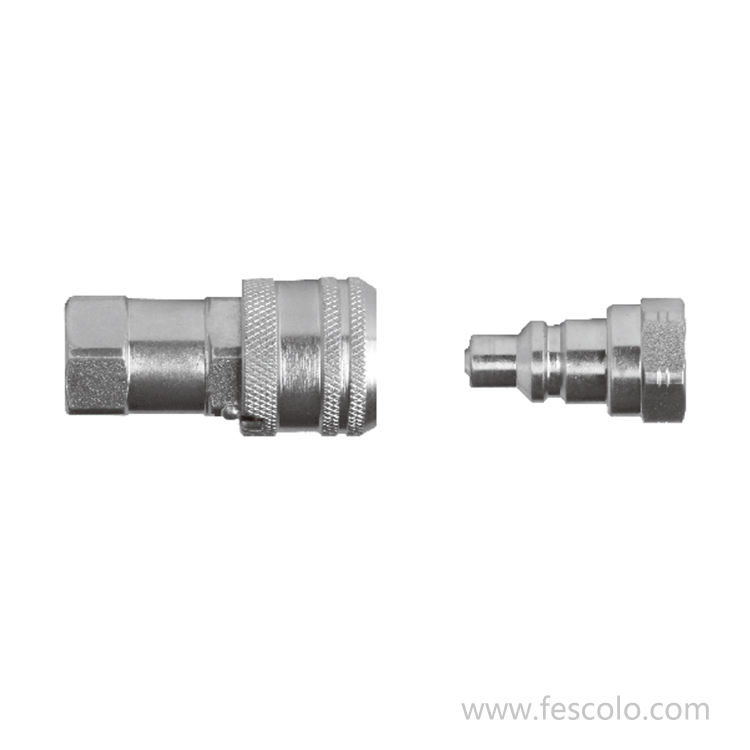

FK-TC Series close type super high rpessure hydraulic quick coupling

Features

FK-TC Series couplings feature:

◆ Positive valve stop, the perch maintains valve alignmentand provides metal to metal valve stop to ensure that thevalves openfully , every time.

◆ Precision machined valves with electrometric seal providefor positive shut-off upon disconnection.

◆ Hardened nipples and sleeves and solid barstock constru一ction make for a quality coupling with maximum resistanceto damage from hydraulic and mechanical shock.

◆ Durable ball-locking mechanism assures reliable connectio-n every time.A large number of locking balls distributes andworkload evenly while providing alignment and swivelingaction toreduce hose torque and prolong hose life.CAUTION:These products are not to be used as swivels; rotationunder pressure will result in excessive and premature wear.Small diameter mating seal helps keep separating forces toa minimum, allowing for easier connect and disconnect atpressure up to 5000 PSI.

◆ Sleeve locking mechanism prevents accidental disconn-ection when coupling is dragged along the ground.

◆ Compatible with PARKER TC Series.
