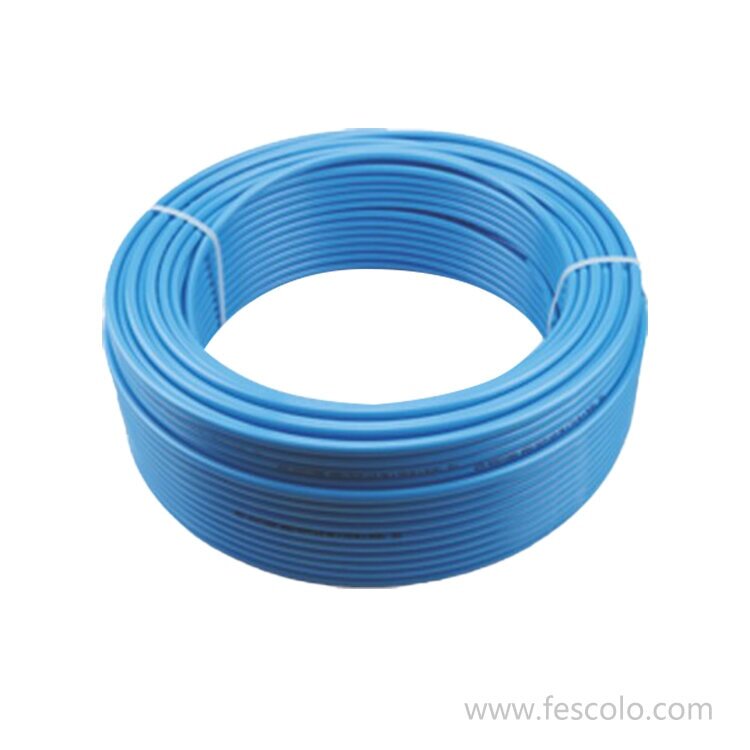

What is tpee tube?
TPEE (Thermoplastic Polyether Ester Elastomer) tubing is made from a unique combination of polyether and polyester, offering the advantages of both thermoplastic plastics and elastomers.
This Kind of Polymer pipe exhibits exceptional mechanical properties, high wear resistance, chemical resistance, and excellent flexibility. These qualities make TPEE tubing widely used in many industries that require high-performance materials.
Characteristic of TPEE Tube
The most prominent characteristics of TPEE tubes are heat shrinkage and flexibility, which are essential for their widespread use.
◆ Outstanding Mechanical Properties
TPEE tubing features excellent tensile strength and impact resistance, allowing them to withstand high loads and retain their performance over an extended period.The material also has strong fatigue resistance and tear strength, making it suitable for demanding environments.
◆ High Temperature Resistance
TPEE tubing performs well across a wide temperature range, typically from -40°C to 125°C, and can even tolerate higher temperatures in some cases. This makes them reliable for use in high-temperature applications.
◆ Excellent Chemical Resistance
TPEE tubings are highly resistant to a wide variety of chemicals, including acids, alkalis, and solvents, making them ideal for use in chemical industries where exposure to harsh substances is common.
◆ Superior Abrasion Resistance
Due to its dense molecular structure, TPEE tubing offers excellent resistance to wear and tear, ensuring a longer lifespan for piping systems under high-stress conditions.
◆ Environmental Friendliness
TPEE is a recyclable material with non-toxic and non-harmful properties, making it an environmentally friendly choice for various applications.
TPEE Tubing Specification
Material | Polytetrafluoro Ethylene |
Applicable medium | Strong acid, Strong bases, Oil |
Embient and fluid temperature | -80℃~+260℃ |

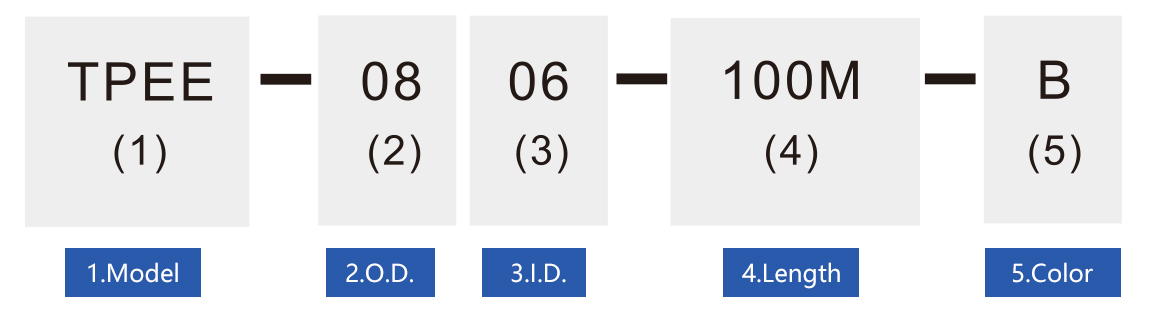

Ordering code
ITEM | D1 | D2 | L | Inch | Max.workingpressureat 20℃(bar) | Max.Burstpressureat 20℃(bar) |
TPEE | 8mm | 6mm | 100m | 12bar | 36bar | |
TPEE | 10mm | 8mm | 100m | 12bar | 36bar | |
TPEE | 12mm | 10mm | 100m | 12bar | 36bar | |
TPEE | 14mm | 12mm | 100m | 12bar | 36bar |
Applications of TPEE Tube
◆Automotive Industry
TPEE tubing is widely used in automotive systems, including fuel systems, brake lines, and air conditioning hoses.The high resistance to temperature and chemical corrosion makes them suitable for automotive environments where durability is crucial.
◆Industrial Automation
In industrial automation, TPEE tubing are used in pneumatic systems, hydraulic systems, and material handling. The tube's excellent flexibility and abrasion resistance make it an ideal choice for various pipeline systems in automated manufacturing processes.
◆Electrical and Electronics Industry
TPEE offers good electrical insulation properties, making TPEE tubing commonly used for cable sheathing and conduit in electrical and electronics applications, providing additional protection and durability.
◆Food and Pharmaceutical Industry
Due to its non-toxic and safe properties, TPEE tubings are widely used in the food and pharmaceutical industries for piping systems that must meet strict hygiene and safety standards.
◆Chemical Industry
With its strong chemical resistance, TPEE tubings are commonly used for chemical fluid transfer, storage, and transportation, as they can withstand exposure to various chemicals without degrading.
Future Development Trends of TPEE Tube
As industrial technology advances and environmental consciousness increases, TPEE tubes, with their high performance and eco-friendly properties, will continue to expand in various sectors. With the demand for higher durability, sustainability, and advanced technical requirements, TPEE tubes have great potential in industries like smart manufacturing, green buildings, and sustainable development.
If you need Other Tubing Accessories, you can contact us to order or customize!
