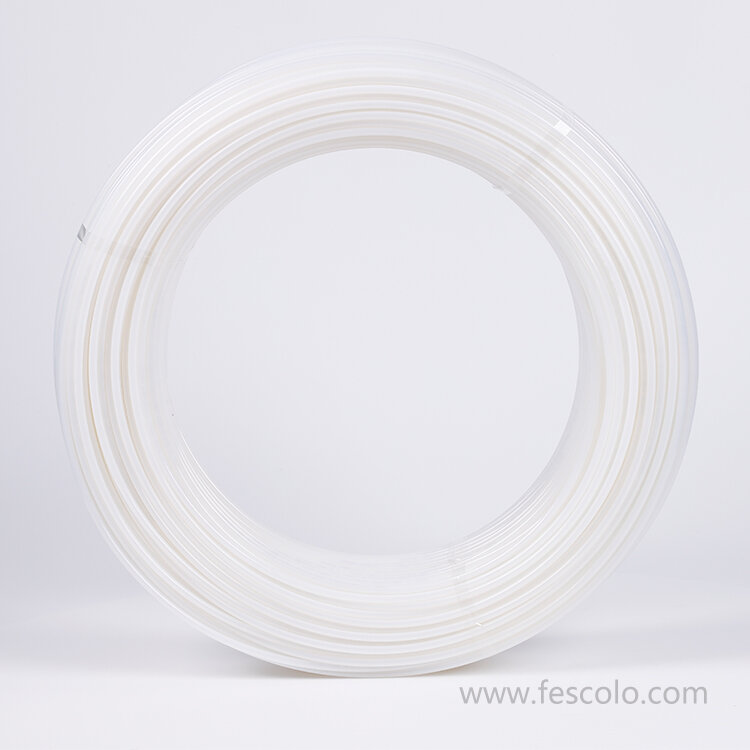

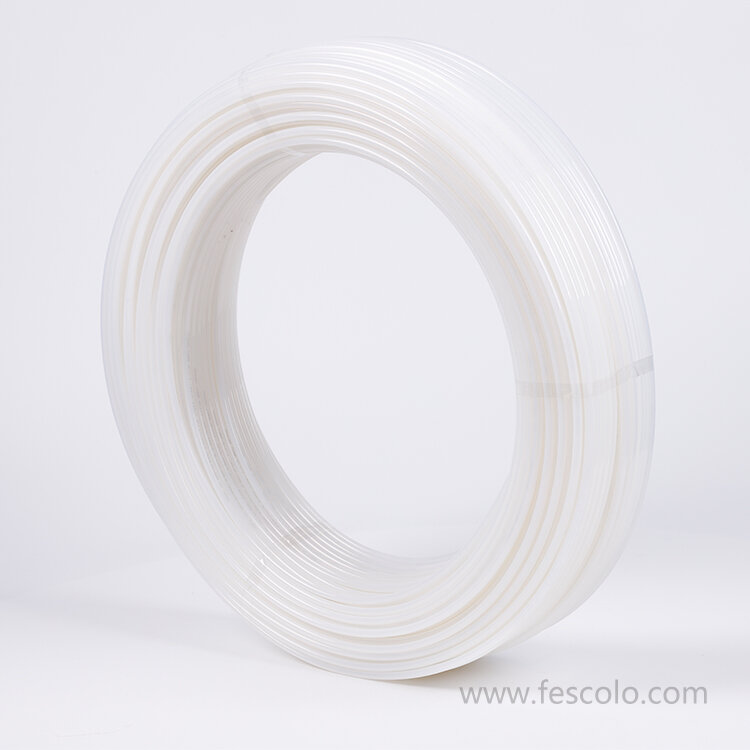

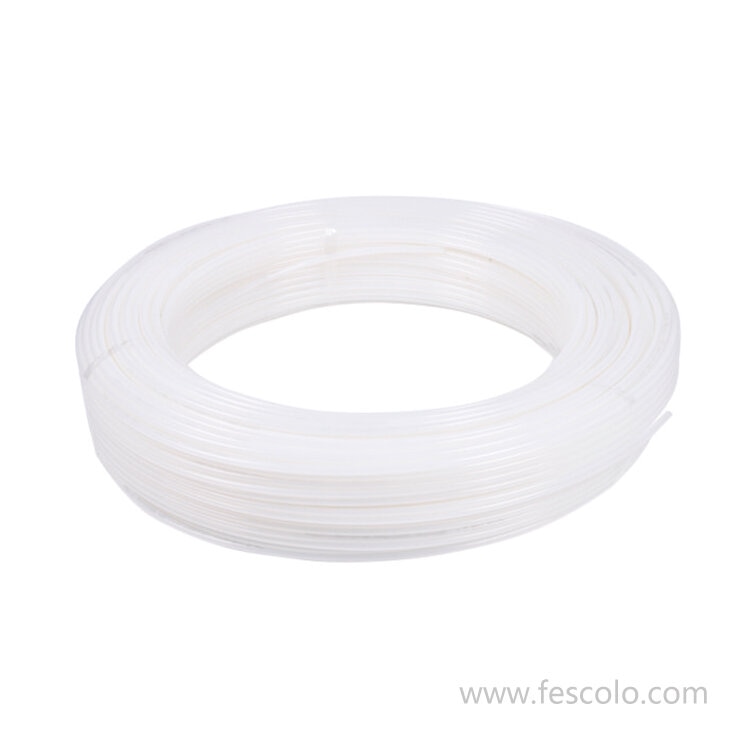

PUSC Nylon Tube

PUSC Nylon Tube


Characteristic

 Inner PA11 Resists corrode by manifold chemicals

 Outer PU keep wearable and flexibility

 Excellent insulating ability and resists leakage current

 Long working life

 Applicable for paint delivery, pressure vessel, robot, manual and automatic spray gun


Inquire Now
  • Dimension
  • Details

Characteristic


 Inner PA11 Resists corrode by manifold chemicals

 Outer PU keep wearable and flexibility

 Excellent insulating ability and resists leakage current

 Long working life

 Applicable for paint delivery, pressure vessel, robot, manual and automatic spray gun





Specification


MaterialPolyurethane(outer)+PA11(inner)
Applicable medium

Paint,solvents

Embient and fluid temperature-40℃~+60℃
Hardness Shore D 95A+60D

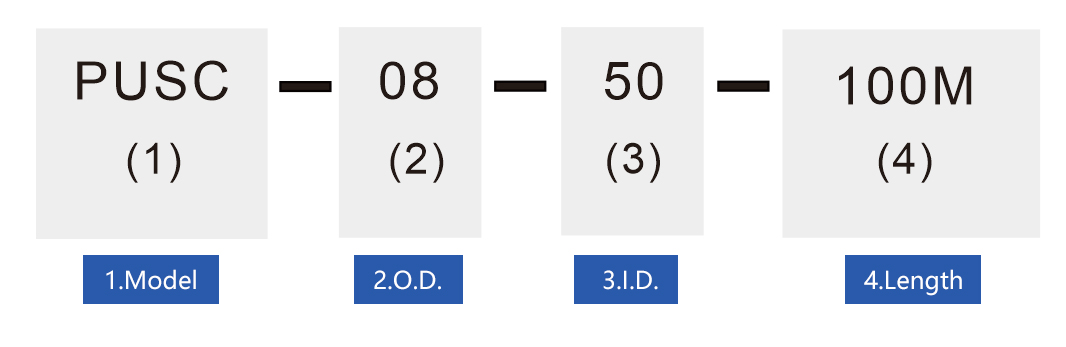

Ordering code


PUSC Electro-static Coating Tube




PUSC Electro-static Coating Tube

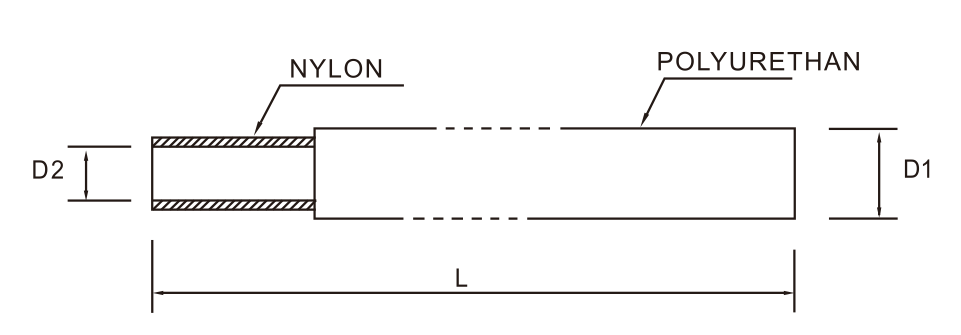

 ITEM

D1

D2

 L

 Net weight

(kg/Roll)

MAX.working

pressure

  at 20℃(bar)

Max.burst

pressure

at 20℃(bar)

PUSC-0640
6mm
4mm100m2.012bar
40bar
PUSC-0850
8mm
5mm100m3.812bar
40bar
PUSC-0960
9mm
6mm100m4.510bar
30bar
PUSC-1065
10mm
6.5mm100m5.3510bar
30bar
PUSC-1180
11mm
8mm100m5.610bar
30bar
PUSC-1280
12mm
8mm100m7.210bar
30bar













Please get in touch with us for more latest products and discounts
