EE series European Economical Type Quick Coupling

EE series European Economical Type Quick Coupling


Features:

 EE20 series economical European quick couplings are interchangeable with Rectus 25, CEJN320, Parker RF series.

 Self-locking, single side with valve Push-to-connect sleeve for easy one hand operation

 EE20 series joints are small in size, simple to operate, safe and reliable. If the working pressure requirements are not high, it can replace EU20 series.

 Usually the valve body is made of brass nickel plated, and the outer cover is made of carbon steel nickel plated or brass pickling. At present, our company only provides 1/4 flow valve body.

 This series of quick couplings adopts 6 Φ3.5 steel ball structure, the highest working pressure is 1.6MPa (2.0MPa for steel sleeve and nipples), which belongs to the medium pressure type in pneumatic quick couplings. It is recommended to use carbon steel nickel-plated or zinc-plated nipples or plugs.

 The commonly used sealing material is NBR, in addition, FKM fluorine rubber, EPDM and other sealing  materials are available.

 Generally applications include: air compressors, pneumatic tools, lawn mowers, spraying and other industries.



Inquire Now

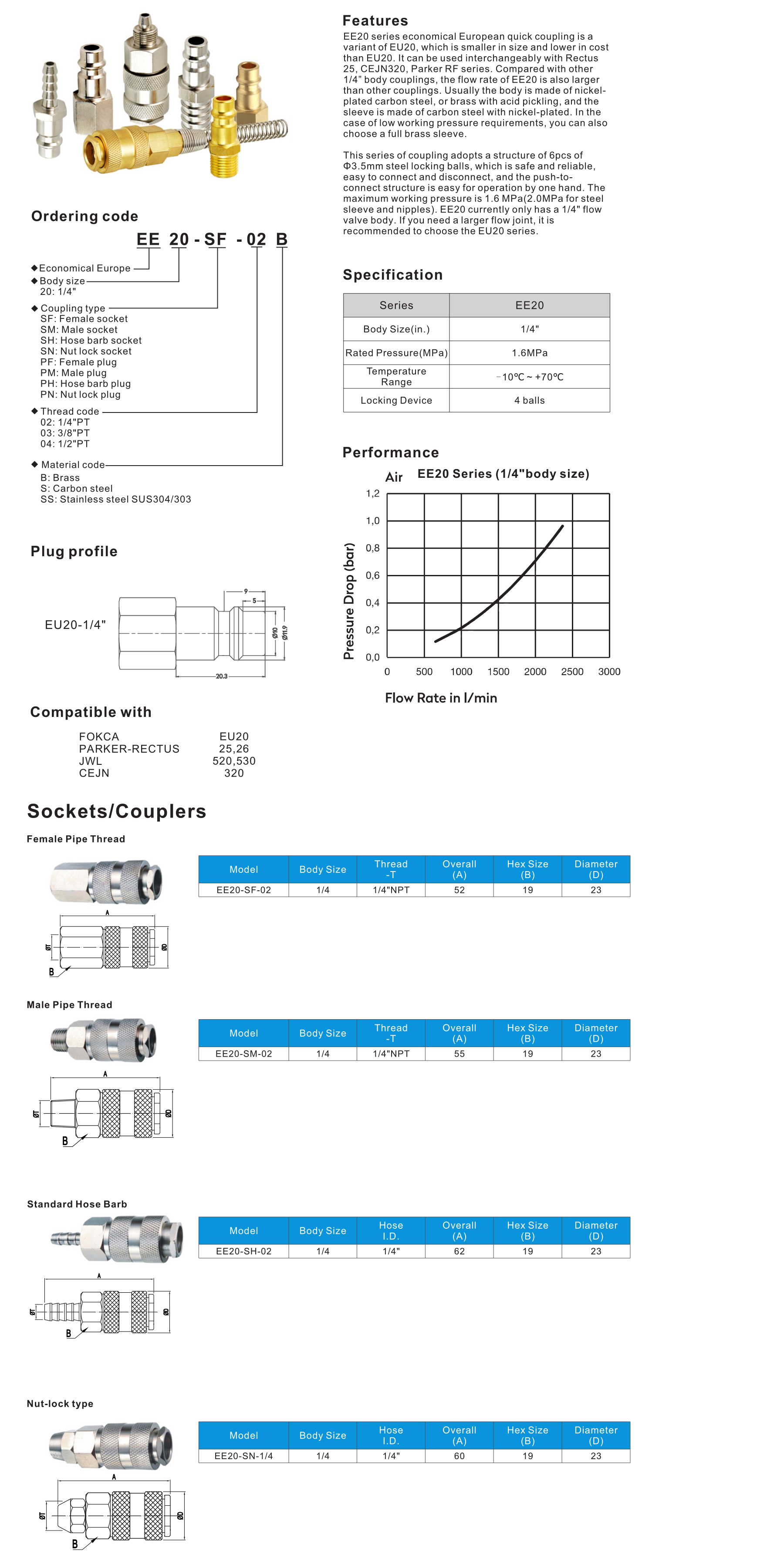

  • Dimension
  • Details

EE series European Economical Type Quick Coupling

EE20 series economical European quick coupling is a variant of EU20, which is smaller in size and lower in cost than EU20. It can be used interchangeably with Rectus 25, CEJN320, Parker RF series. Compared with other 1/4” body couplings, the flow rate of EE20 is also larger than other couplings. Usually the body is made of nickel-plated carbon steel, or brass with acid pickling, and the sleeve is made of carbon steel with nickel-plated. In the case of low working pressure requirements, you can also choose a full brass sleeve.



This series of coupling adopts a structure of 6pcs of Φ3.5mm steel locking balls, which is safe and reliable, easy to connect and disconnect, and the push-to-connect structure is easy for operation by one hand. The maximum working pressure is 1.6 MPa(2.0MPa for steel sleeve and nipples). EE20 currently only has a 1/4" flow valve body. If you need a larger flow joint, it is recommended to choose the EU20 series.


EE series European Economical Type Quick Coupling

EE series European Economical Type Quick Coupling

EE series European Economical Type Quick Coupling

EE series European Economical Type Quick Coupling
