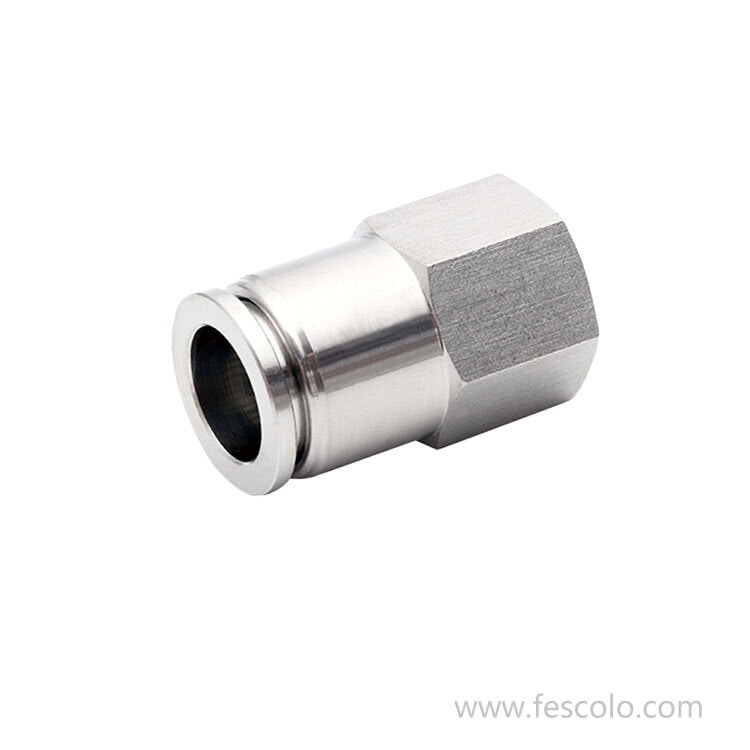

SPCF Series Female Straight

SPCF Series Female Straight


Characteristics:

◆ Support customization, OEM and ODM, CAD drawings can be provided according to customers' requirements.

◆ Each product will be inspected and cleaned via ultrasonic, and dried off before shipping.

◆ Most of parts are produced by automation equipments, each essential process is  checked by specialized inspectors in order to reach the requirements of tolerance and guarantee its quality.

◆ Varies of materials are available, such as 303,304,316,316L.

◆ Different thread types are available, such as BSP, PT, NPT, and metric thread.

◆ With ISO9001, CE and FDA certificates.


Inquire Now
  • Dimension
  • Details

Specification


ItemParameter
Working mediumAir, Steam, Water, Vacuum or other liquid
Pressure Range0~2.0MPa
Negative Range-100KPa
Proof  pressure3.0MPa
Ambient temperature-20~120℃
Material of bodySUS304, SUS316, SUS316L
Material of sealingFKM(Viton)
Applicable tubePU,PE,Nylon(pa),PVC and Teflon tubing




Ordering Code



SPC Series Male Straight


Fitting type(1)


CodeTypeCodeTypeCodeType
SPBMale T branchSPJPlug reducerSPPPlug
SPCMale straightSPKMultiple branchSPCFFemale straight
SPDMale T branchSPLMale 90° elbowSPUStraight union
SPET branchSPMBulkhead fittingSPV90° elbow
SPHBanjo FittingSPOCRound straightSPXMale Y branch
SPYY branchSPZACrossSPLFFemale elbow
SSCSpeed controlSSUSpeed controlSPMFBulkhead fitting



Tube O.D. (2)


Metric size04060810121416
Inch size1/8"5/32"1/4"5/16"3/8"1/2"



Thread size (3)


MetricBSPPTNPT
M5G01: G1/801: 1/8"PTN01:1/8"NPT
M6G02: G1/402: 1/4"PTN02:1/4"NPT
M8G03: G3/803: 3/8"PTN03:3/8"NPT
M10G04: G1/204: 1/2"PTN04:1/2"NPT
M12G06: G3/406: 3/4"PTN06:3/4"NPT
M14


M16


M18

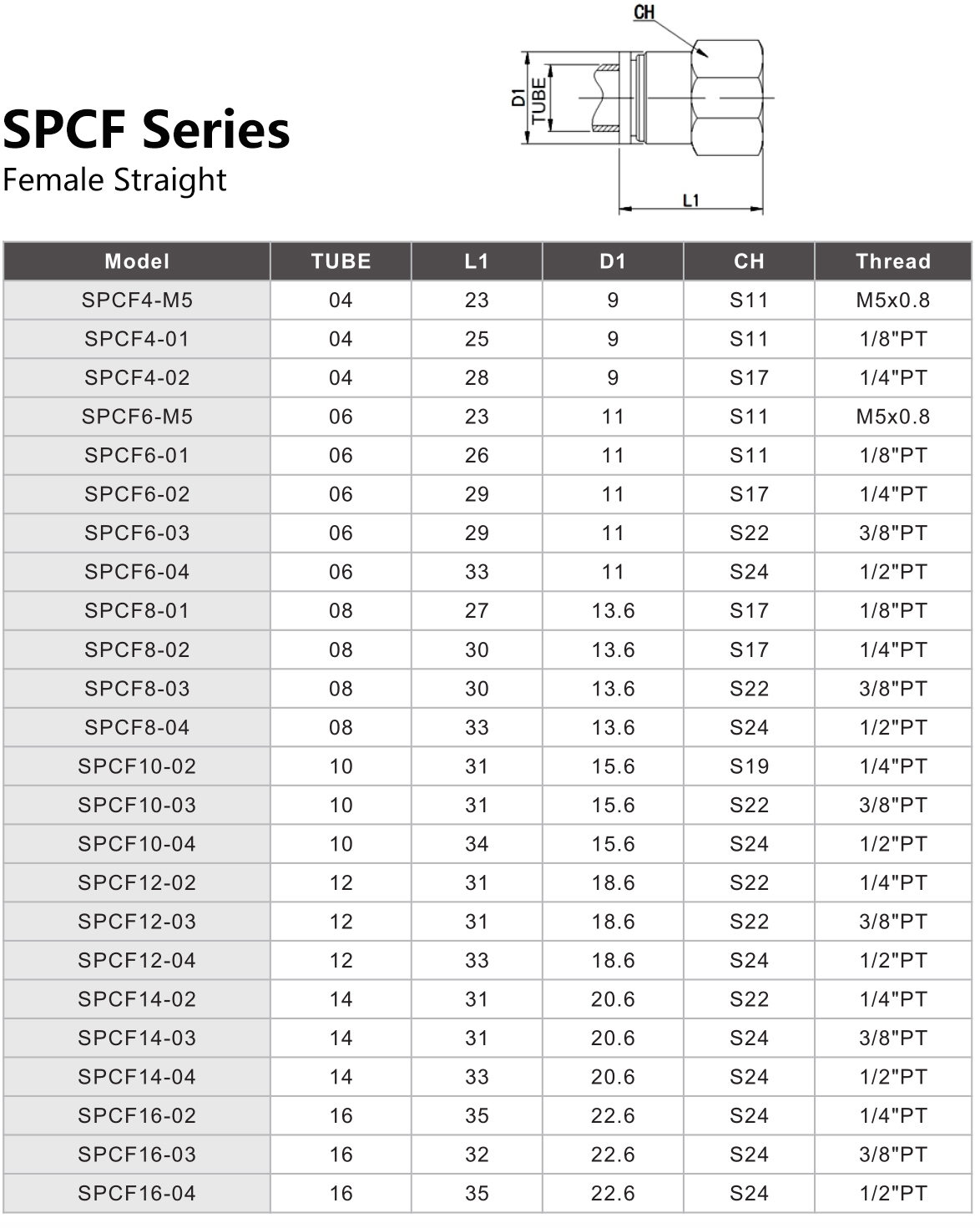

Dimension


SPCF Series Female Straight
