IH series High Pressure Type Quick Coupling

IH series High Pressure Type Quick Coupling

Features:

1)  Comply with A-A-59439 (MIL-C-4109F, ISO 6150-B) global interchangeability requirements, compatible with all IN20 series nipples or plugs.

2)  Manual sleeve, single shut off.

3)  Usually use brass for the body, and carbon steel with zinc plated for the sleeve and plug, stainless steel spring and ball.

4)  At present, we only provides 1/4” flow rate body size.

5)  This series of quick connector adopts 6 steel balls structure, and the maximum working pressure can reach 3.0MPa. If the working pressure is lower than 2.0MPa, brass or aluminum alloy nipples can also be used.

6)  The commonly used sealing parts is NBR, in addition, fluorine rubber FKM, EPDM and other sealing materials are available.

7)  Generally applications include air compressors, pneumatic tools, cleaning, spraying and other industries.



Inquire Now

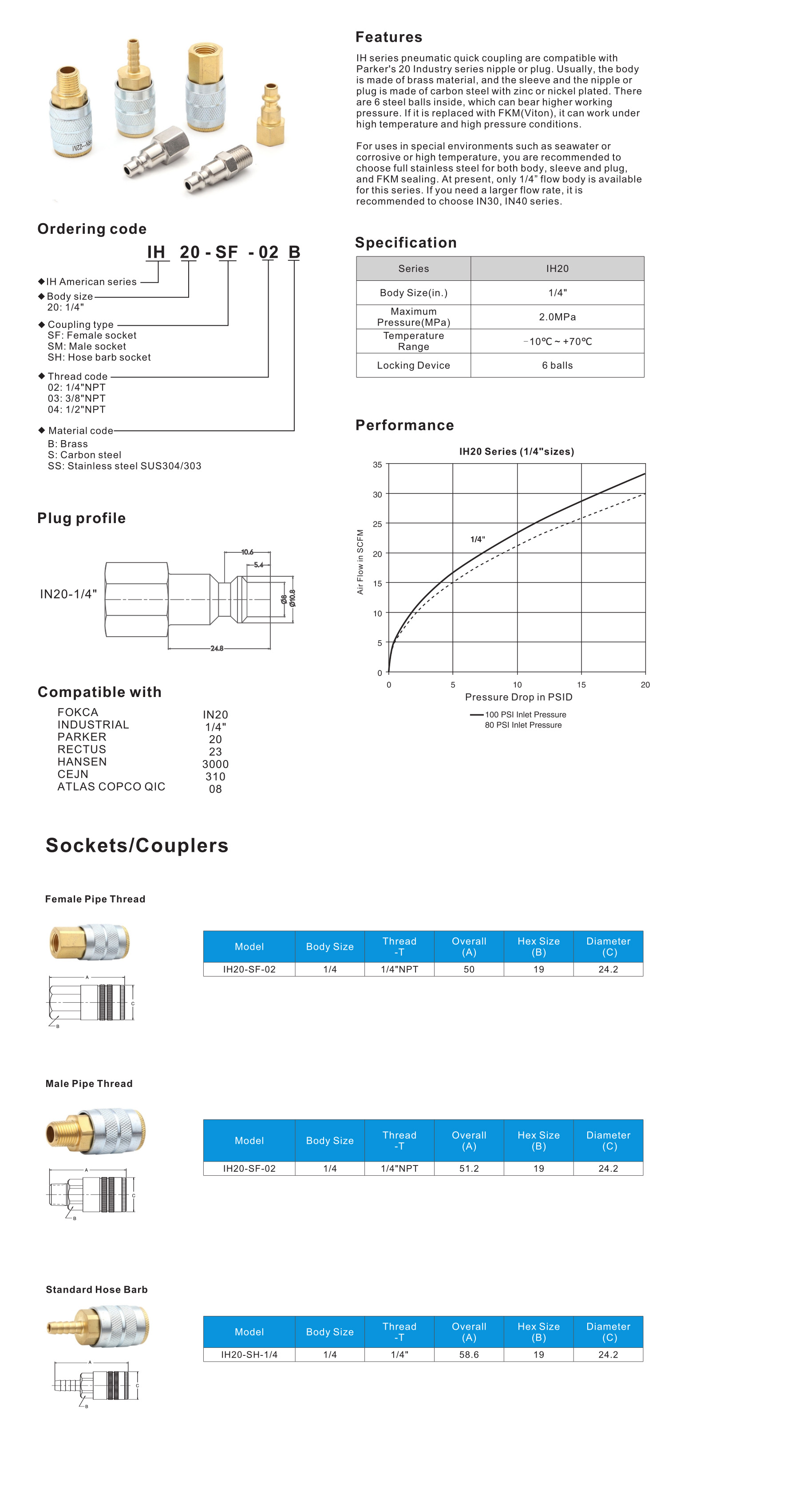

  • Dimension
  • Details

IH series High Pressure Type Quick Coupling

IH series pneumatic quick coupling are compatible with Parker's 20 Industry series nipple or plug. Usually, the body is made of brass material, and the sleeve and the nipple or plug is made of carbon steel with zinc or nickel plated. There are 6 steel balls inside, which can bear higher working pressure. If it is replaced with FKM(Viton), it can work under high temperature and high pressure conditions.



For uses in special environments such as seawater or corrosive or high temperature, you are recommended to choose full stainless steel for both body, sleeve and plug, and FKM sealing. At present, only 1/4” flow body is available for this series. If you need a larger flow rate, it is recommended to choose IN30, IN40 series.


IH series High Pressure Type Quick Coupling

IH series High Pressure Type Quick Coupling

IH series High Pressure Type Quick Coupling

IH series High Pressure Type Quick Coupling
