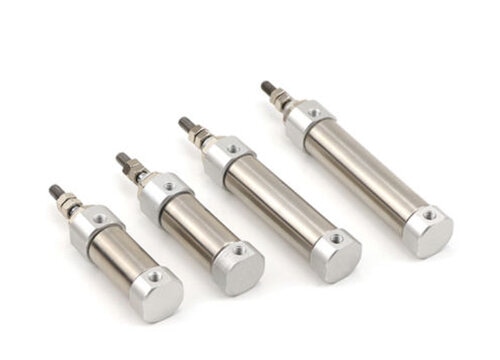

Mini air cylinder pneumatic

A mini cylinder is a compact, small-sized, and lightweight linear pneumatic actuator. It utilizes compressed air to drive an internal piston for linear reciprocating motion within limited installation space, delivering precise pushing or pulling force. It serves as a core component in modern precision automation equipment for achieving lightweight and rapid motions.

The output torque and output power of the mini air cylinder pneumatic are more stable. Increasing the number of cylinders can make the gas car easier to start, and the acceleration response is better. In order to improve the performance of the gas car, the number of cylinders must be increased.

Characteristics

Small pneumatic cylinder has the following :

Lubrication-free: Oil-containing powdered copper is used as the shaft bearing, so that the piston rod does not need to be lubricated.

Durability: The cylinder body, front and rear covers are treated with anodized hard anodizing, which not only has corrosion resistance, but also has a smaller and more beautiful appearance.

High temperature resistance: The cylinder adopts high temperature sealing material, so that the cylinder can work normally at 150 degrees Celsius.

Diversity of installation types.

With magnetism: There is a permanent magnet on the cylinder piston, which can trigger the induction switch installed on the cylinder to sense the movement position of the cylinder.

Key Advantages

Extreme Space Saving: In confined equipment interiors or densely arranged workstations, mini air cylinders serve as a highly efficient linear drive solution.

Lightweight Design and High Responsiveness: Mini pneumatic cylinders feature low moving mass, enabling rapid start-stop performance, high acceleration, and reduced air consumption, effectively balancing energy usage with operational efficiency.

Standardization and Interchangeability: Mini cylinders from Fokca Manufacture comply with international standards such as ISO 6432, ensuring wide availability of spare parts.

Design Flexibility: Mini cylinders offer various mounting options (front/rear flange, foot mounts, etc.), piston rod end configurations (threaded, floating couplings), and accessories such as magnetic switches and cushions.

Applications: stamping marking, bending profiles, die punching, punching steel, profile butt welding, extrusion molding, flattening and straightening, riveting forging, shaping sheet metal, tight assembly, riveting connection, metal stamping. Common pneumatic cylinder small are: DSN Series ISO6432 Mini Cylinder, MAL Series Aluminum Cylinder.

For more information, please feel free to Contact us.
