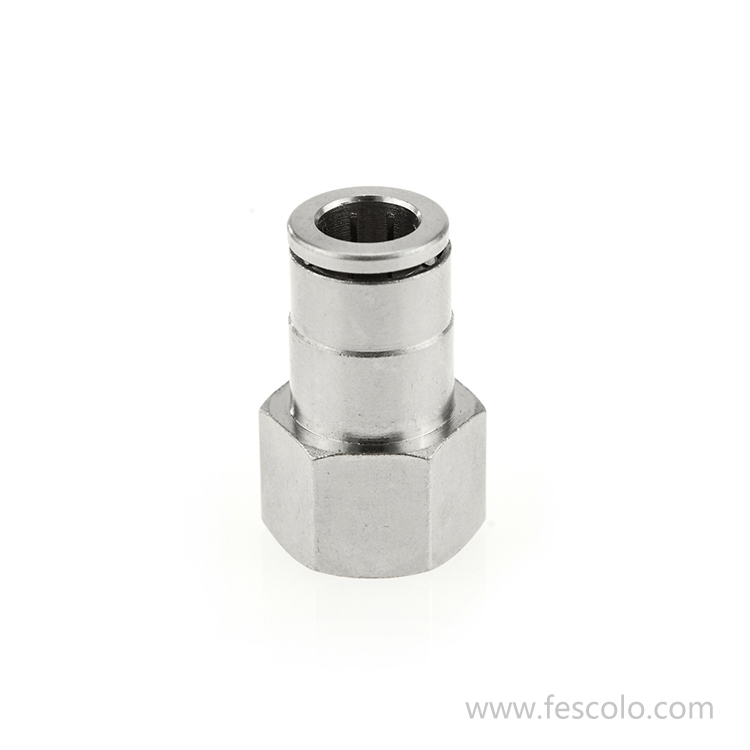

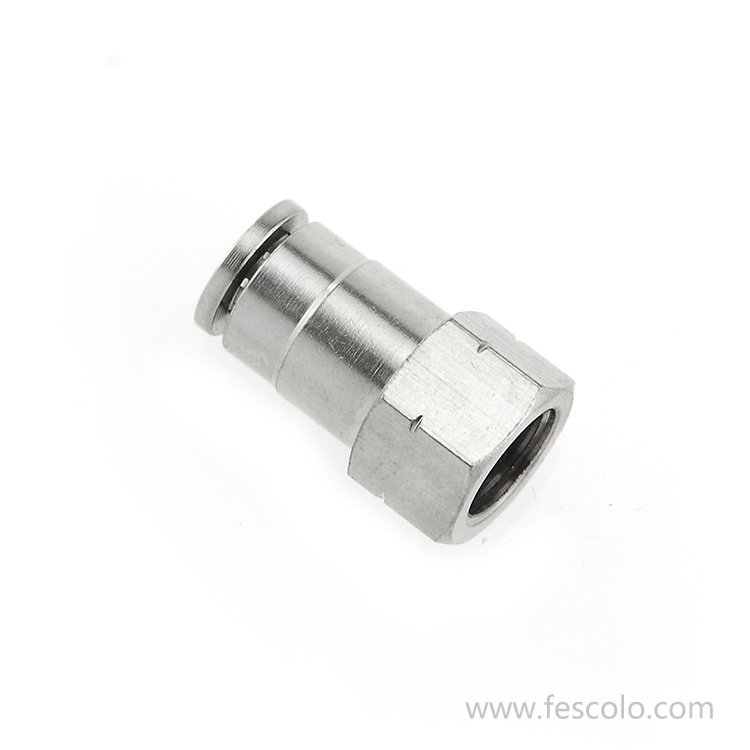

BPCF-G Female straight

BPCF-G Female straight


Feature:

Materials of body: Brass / Nickel-Plated.

Working Temperature: -20℃~+80℃

 Applicable medium :Compressed air, gas,vacuum.

 Thread type: NPT, BSPT(PT or R), BSP, Metric.

 Recommended tubings: PA11,PA12,PA6, Polyethylene PE,Polyurethane PU(98 Shore A).

 Acceptable Tolerance of tubing:  ±0.1mm.

 Working Pressure range: 0~20Bar.


Inquire Now

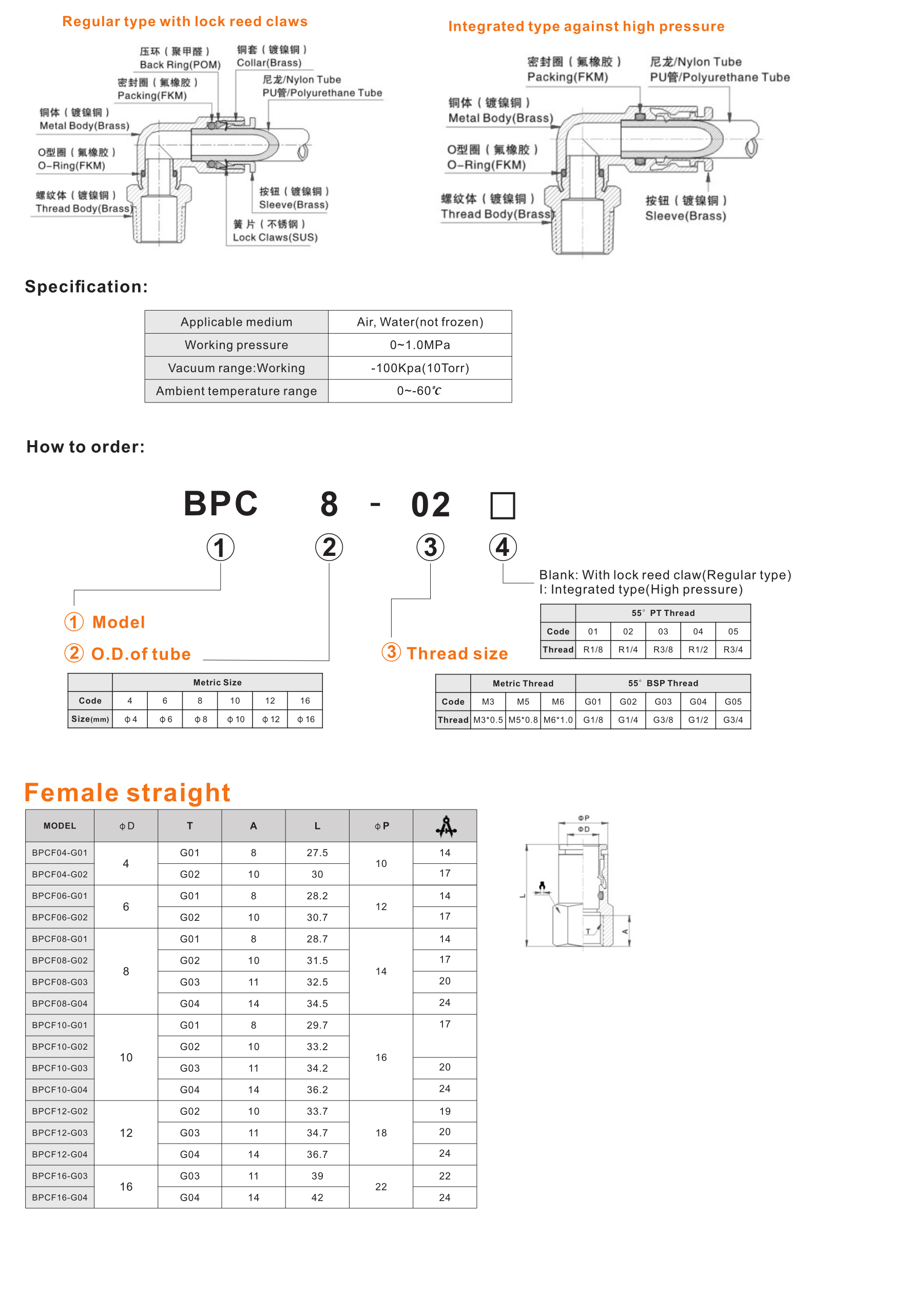

  • Dimension
  • Details

BPCF-G Female straight

BPCF-G Female straight

BPCF-G Female straight
