Pneumatic cylinders are one of the pneumatic components that constitute an entire pneumatic system, and they can be understood as a type of air powered actuator that provides power for the whole pneumatic system. The basic accessories of a pneumatic air cylinder include the Air Cylinder Barrel,end caps, piston, piston rod, and various sealing elements. When the air source supplies compressed air to the pneumatic air cylinder, the pressure drives the piston, causing the external piston rod to move in and out along the axis of the cylinder. Pneumatic cylinder structures are simple and robust, with high flexibility. Different types of pneumatic cylinder have distinct features and advantages. In short, an air cylinder is a mechanical device that uses compressed air to produce axial motion. It is commonly used in industry manufacturing and automation,providing power for various machines and tools.
The pneumatic cylinders use compressed air as its power source, with the air cylinder barrel serving as the key area where the pressure energy of the air is converted into mechanical energy. Through the piston and piston rod, the energy of compressed air is transformed into axial or Rotational motion. With its stable and reliable performance, it plays a crucial role in industrial automation and efficiency improvement.
You can enhance your understanding of pneumatic cylinders by exploring the following sections, which cover their advantages, working principles, types, and applications.
◆ Advantage of pneumatic cylinder
◆ Working Principle of pneumatic cylinder
◆ Pneumatic cylinder application
◆ How to Choose Your Right Pneumatic Cylinder Manufacturer
The advantages of pneumatic cylinders are quite evident. Different types of pneumatic cylinder operate on the same principle—using compressed air as a power source to convert the energy of air into mechanical motion. Compared to hydraulic cylinders, pneumatic cylinders offer superior features such as being cleaner, more efficient, and environmentally friendly. The following highlights their key benefits:
◆ Low energy consumption: Pneumatic cylinders use compressed air as their power source and require no electricity, which significantly reduces energy consumption. They are particularly efficient in applications involving large movements or repetitive tasks, providing effective mechanical power.
◆ Reduced environmental pollution: Pneumatic systems use compressed air instead of oil or other liquid media, unlike hydraulic systems. This eliminates the risk of liquid leakage and the environmental contamination associated with it.
◆ Robust yet lightweight: Some cylinders are made from aluminum alloy and stainless steel, featuring a simple structure, light weight, and high resistance to wear and pressure. This helps reduce the load on connected pneumatic components and allows for the overall system size to be minimized.
◆ High-speed operation: Pneumatic cylinders can regulate airflow to achieve high-speed performance, reaching 50 mm/s1000 mm/s (i.e. 0.051 m/s).
◆ Low maintenance cost: Compared to other types of power sources, pneumatic cylinders are stable, reliable, cost-effective, easy to operate, and have low maintenance requirements.
In addition to the common advantages of Pneumatic Cylinders mentioned above.Fokca provides Different types of pneumatic cylinders possess distinct fundamental characteristics and advantages determined by the usage scenario.

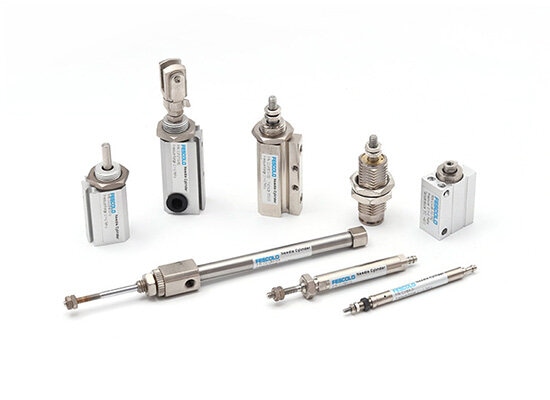

For example，the advantages of Mini Pneumatic Cylinder are mainly reflected in its compact and miniature design, efficient performance, and wide applicability, especially suitable for small automation equipment or precision mechanical systems with limited space.Meanwhile,The Compact air cylinder Compared to others, the structure is more stable, lightweight without losing strength,is ideal for use in confined spaces, offering significant advantages.
Working Principle of Pneumatic Cylinder
Although there are different types of pneumatic cylinder,the working principle of air Cylinder remains unchanged regardless of the size, design, style, or material of the cylinder.They all compress air enters the cylinder barrel, pushing the piston rod to produce mechanical motion or force. Its efficiency and effectiveness can be evaluated by calculating the relationship between the work and energy of the pneumatic cylinder, which is governed by the laws of thermodynamics.
A key principle of pneumatic cylinders is the relationship between pressure and motion. The force produced by the cylinder body is proportional to the air pressure supplied to it. This means that increasing the air pressure will cause the pneumatic cylinder to produce a greater force.

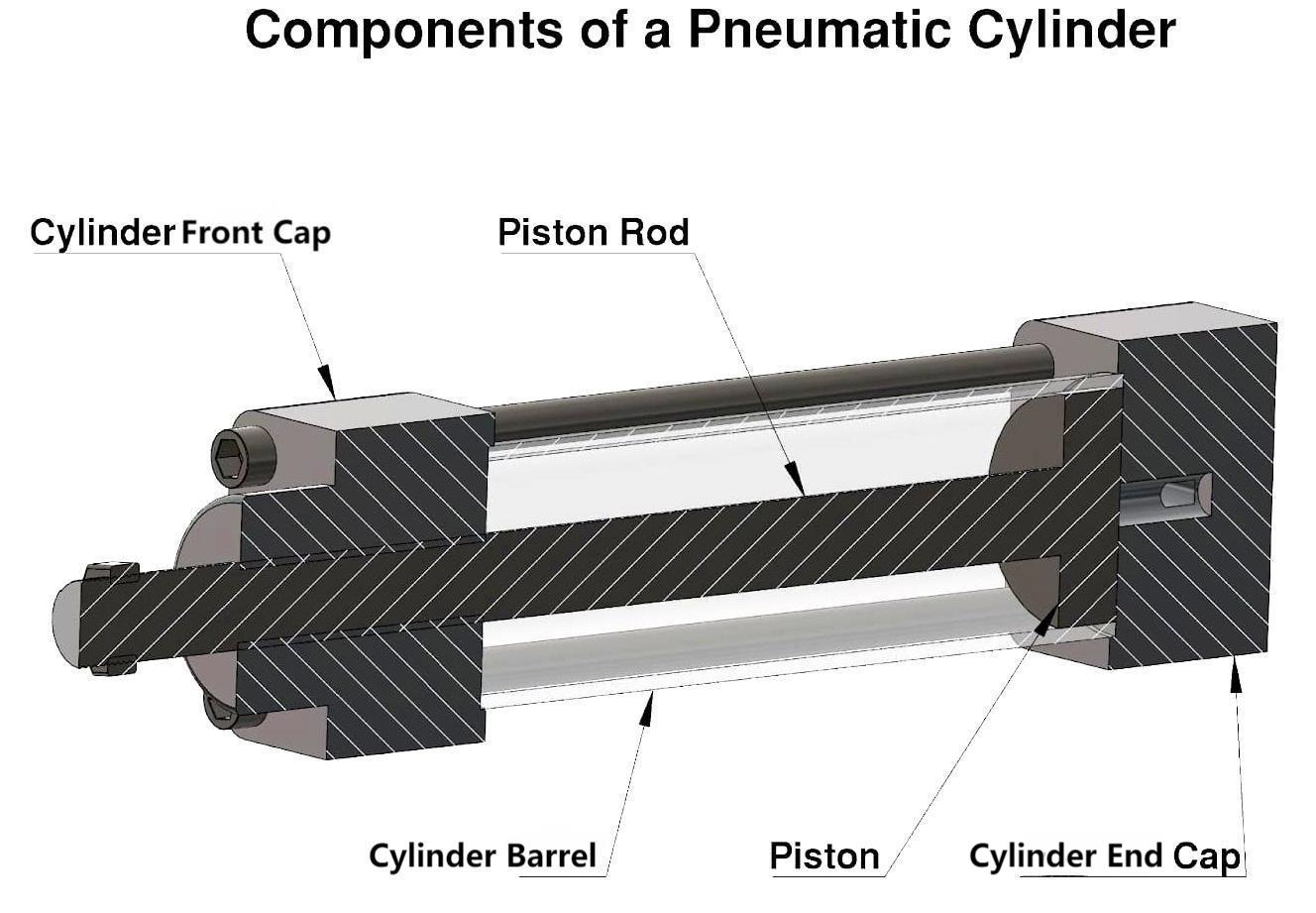

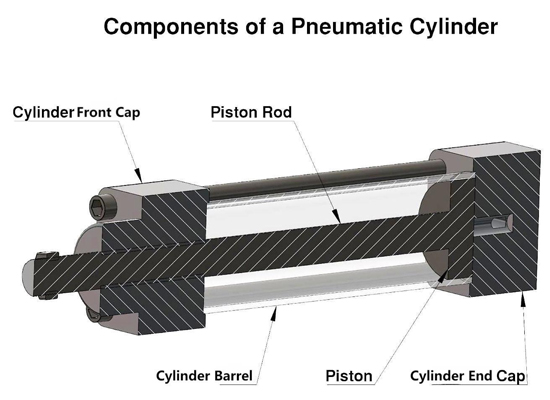

Here are characteristics descriptions of different structures Including Cylinder Barrel, Front and rear end caps, Piston, Piston Rod and some sealing components that provide a sealing effect ：

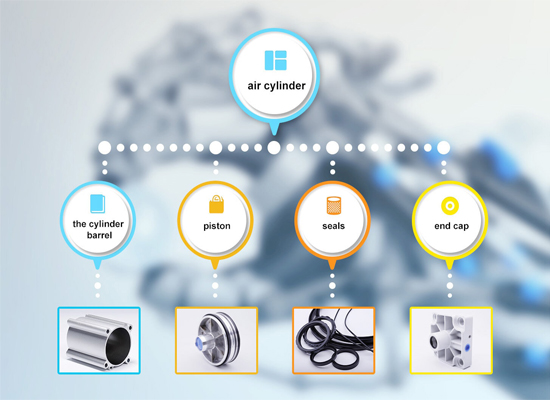

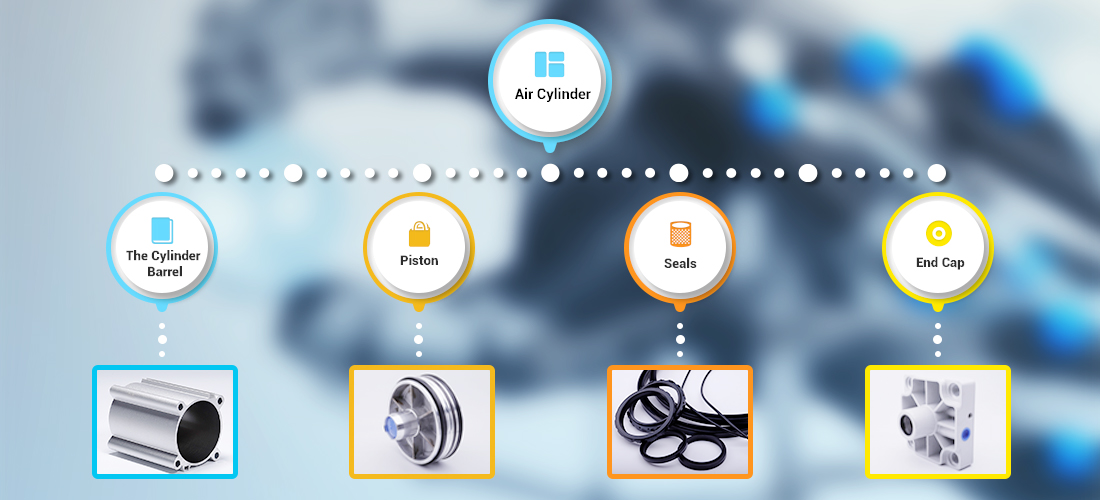

Based on the above pictures, we can intuitively see the mainly pneumatic accessories that make up the pneumatic cylinder and their positions. In addition, we will introduce the functions of accessories：
| Front and End Caps | Plays some functions such as structural support, sealing, connecting gas inlet and outlet, guiding piston rod movement, etc |
| Cylinder Barrel | Forms the cylinder chamber. It also serves as the guiding track for the piston's sliding action . |
| Cover | This component, housing supply and exhaust ports, forms the cylinder chamber. It is split into head and rod covers. |
| Tie Rod | Connects the cylinder tube to the cover, securing them together. |
| Piston | Propelled by air pressure, it moves within the cylinder tube. |
| Piston Packing | Seals the interior of the cylinder to prevent air leaks. |
| Piston Magnet | Serves as a detectable feature for cylinder switches. |
| Piston Rod | Transmits the force and displacement of the piston externally. |
| Rod Packing | Seals the space around the piston rod to avoid air loss. |
| Bush | Provides a guiding function for the piston rod's sliding motion. |
Sealing rings are installed between various components to prevent gas leakage, dust impurities, reduce friction, and increase accessory life.

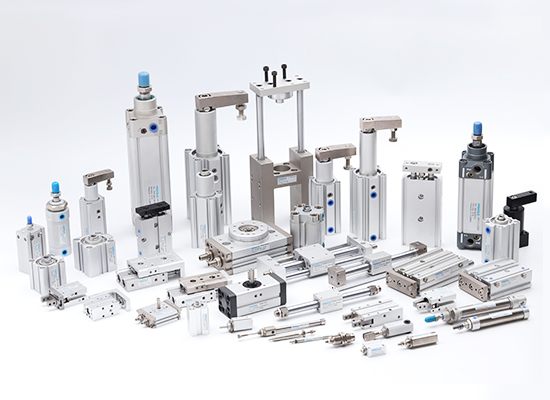

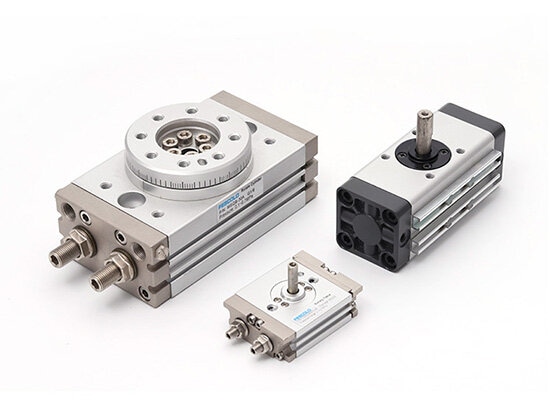

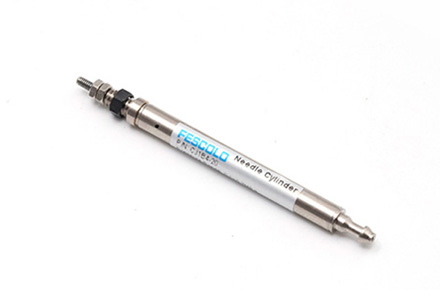

Pneumatic Cylinder Types
If divided according to the direction of air pressure,pneumatic cylinders can be divided into single-acting cylinders,This means that the air pressure only acts in one direction on the piston, and the piston can only move forward. To retract it, a spring or external force is needed. Double-acting cylinders,which controls the movement of the piston direction by controlling the compressed air from two ports, without the need for springs or external forces.Commonly used cylinders include DNC and SI series ISO 6431 standard cylinders, SC standard cylinders, and stainless steel miniature cylinders.The popular styles of Mini cylinders are like CS1-S series, CS1-U, DSN series ISO6432, etc.

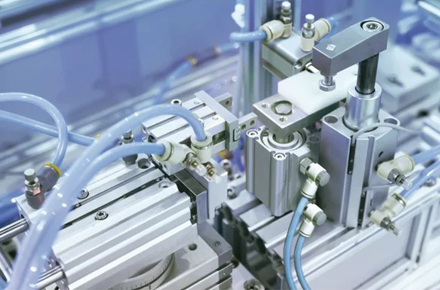

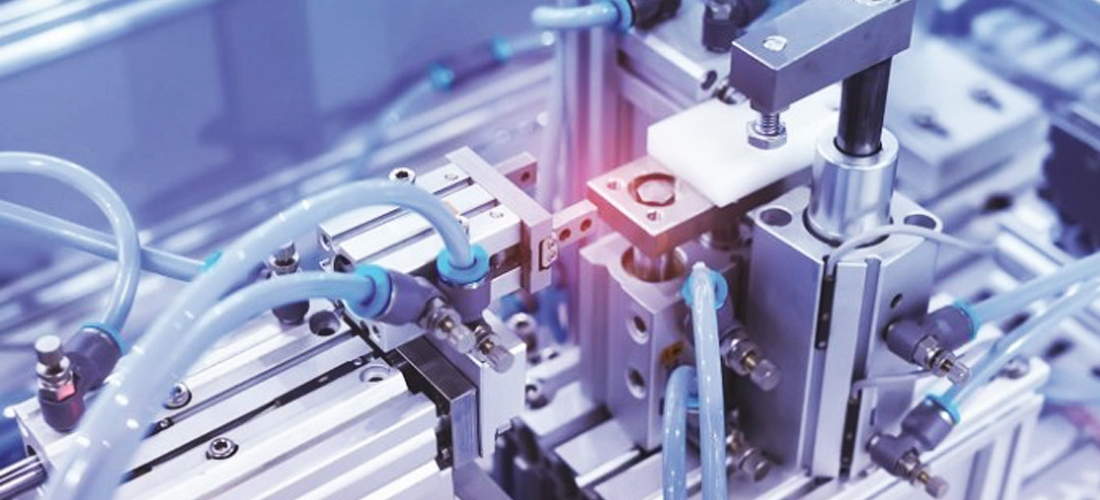

Pneumatic cylinders are widely used in automation and control systems to compress and release gas or liquid to achieve the conversion of force and motion. They are used in manufacturing for assembly lines, in construction for heavy machinery, and in the automotive industry for braking systems, among other applications.
Cylinders play a crucial role in modern industrial and mechanical fields. If you want to learn more about cylinders and their benefits in applications, please contact us. We offer a range of articles, videos, and other resources on cylinders to help you better understand their working principles and application scenarios. Whether you are an engineer, technician, or ordinary consumer, you can benefit from this information.
We believe that by gaining a deeper understanding of cylinders, you will be able to better understand the technology and applications in modern industrial and mechanical fields.
Selecting the right pneumatic cylinder manufacturer is crucial for ensuring the efficiency and reliability of your industrial applications. To make an informed decision, consider the following factors:
Begin by clearly identifying your application's needs, including the type of motion (linear or rotary), required force and load capacity, stroke length,
and available installation space. Understanding these parameters will help you select a manufacturer that offers products tailored to your specifications.
Investigate the manufacturer's adherence to industry standards and certifications, such as ISO 9001 for quality management.
Compliance with recognized standards ensures that the pneumatic cylinders meet stringent quality and safety requirements.
Choose a manufacturer with a proven track record and extensive experience in producing pneumatic cylinders.
A seasoned manufacturer is more likely to possess the technical expertise necessary to address complex application challenges and provide reliable solutions.
Depending on your application's uniqueness, you may require customized cylinder solutions.
Ensure the manufacturer has the capability to design and produce custom pneumatic cylinders that align with your specific operational needs.
Reliable customer support is essential for addressing technical inquiries, facilitating maintenance, and ensuring overall satisfaction.
Opt for manufacturers that offer comprehensive support services, including technical assistance, readily accessible documentation, and responsive communication channels.
While cost is an important consideration, it should be balanced with the quality and durability of the product.
Assess the total cost of ownership, including maintenance expenses and operational efficiency, to determine the overall value provided by the manufacturer's pneumatic cylinders.
By meticulously evaluating these factors, you can select a pneumatic cylinder manufacturer that not only meets your technical requirements
but also supports your long-term operational goals, ensuring a successful and enduring partnership.

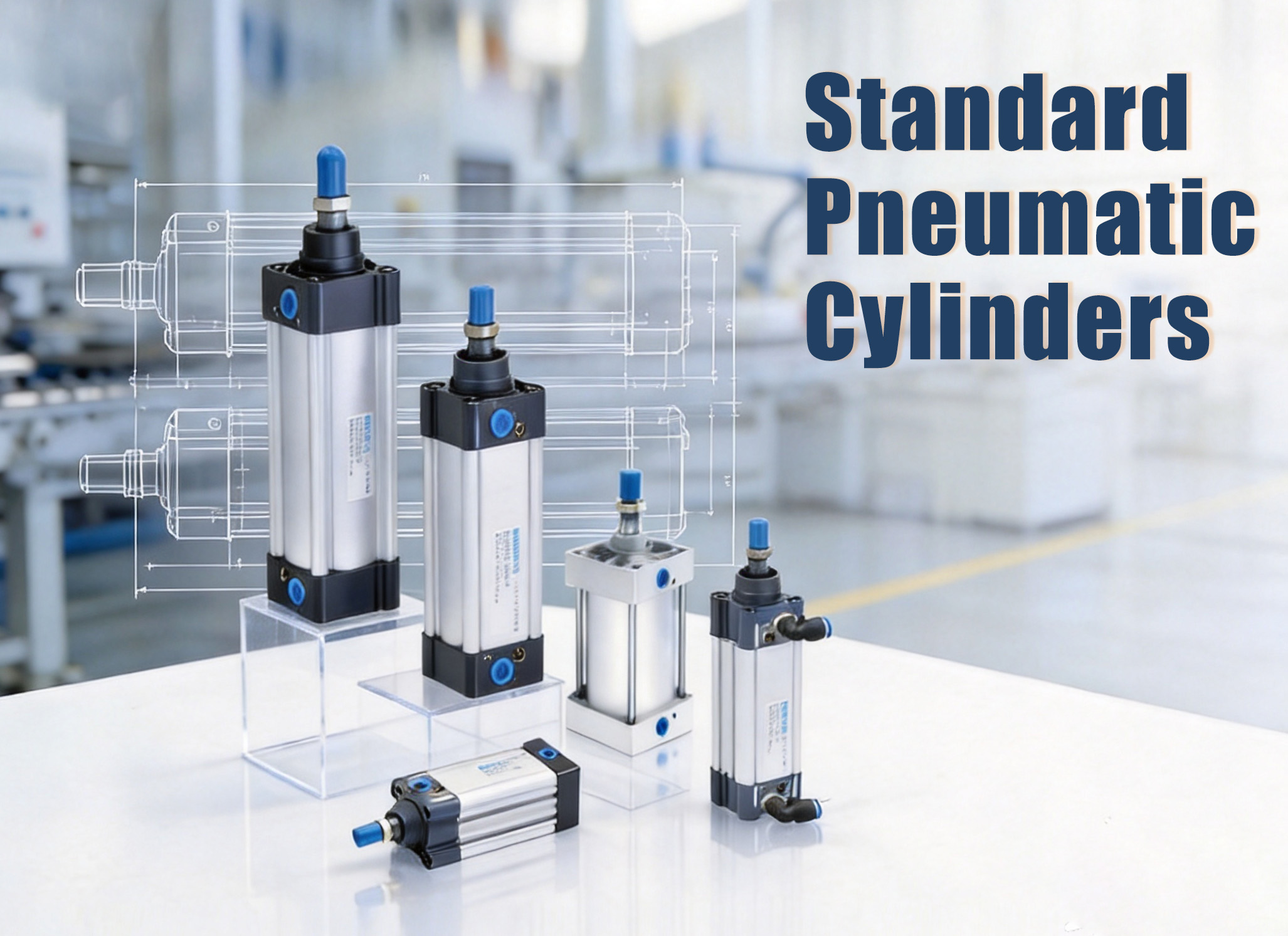

Fokca offers several different types of pneumatic cylinder and related pneumatic cylinder accessories.We provide professional industrial automation solutions according pneumatic cylinder and diverse customer cylinder services.

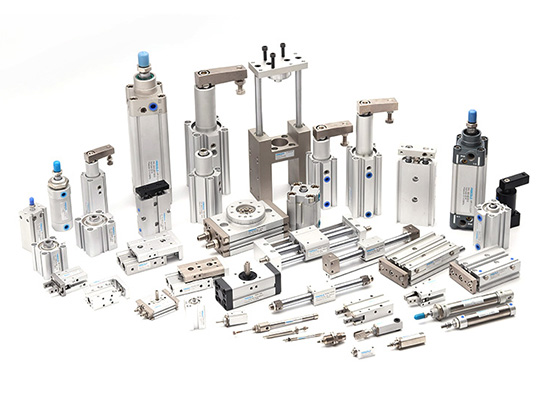

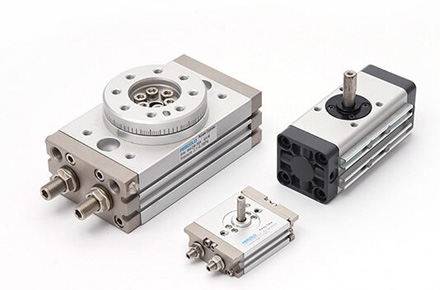

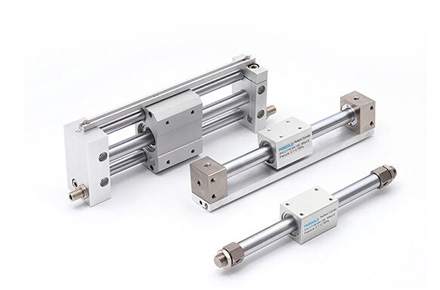

As we all know, different types of pneumatic cylinders play various roles in different fields.Here is the list of Fokca's flagship pneumatic cylinder products:

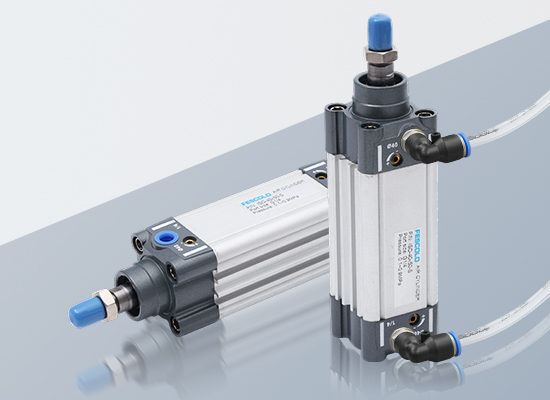

◆ ISO6431(ISO15552) Pneumatic Cylinder

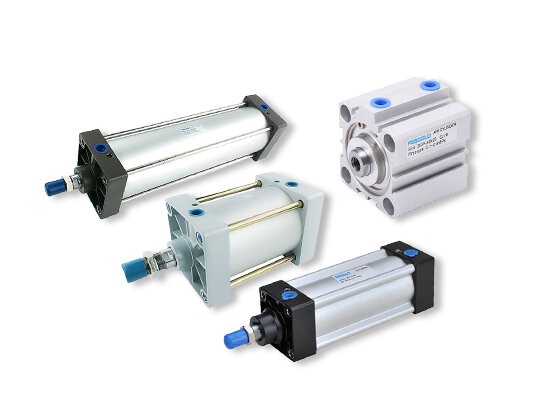

◆ Airtac Standard Pneumatic Cylinder

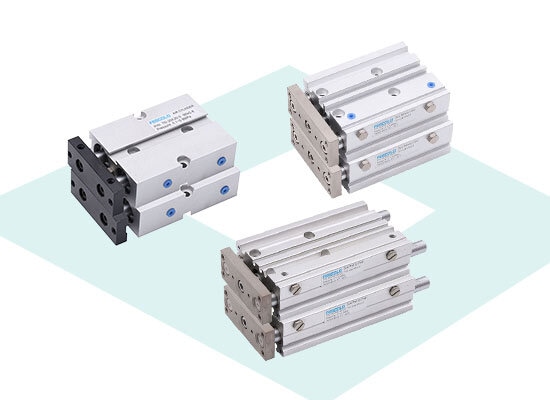

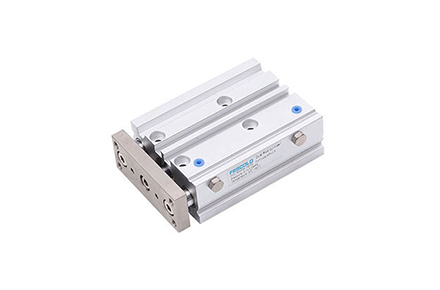

◆ Dual Rod Guided Air Cylinders
