DNC Series ISO6431 Standard Cylinder

The DNC Series cylinder is a standardized cylinder produced by Airtac, fully compliant with the international standard ISO6431. It offers high quality and cost-effectiveness, and its installation dimensions and performance parameters allow for direct interchangeability with cylinders of the same standard from numerous domestic and international brands (such as Festo, SMC, CKD, etc.).

The Airtac DNC Series ISO6431 cylinder is a high-quality, cost-effective "universal-type" industrial standard cylinder. Its greatest value lies in its internationally standardized interchangeability, providing engineers with a stable, reliable, flexible, and economical linear motion solution. It is a very common and reliable choice in automation projects.

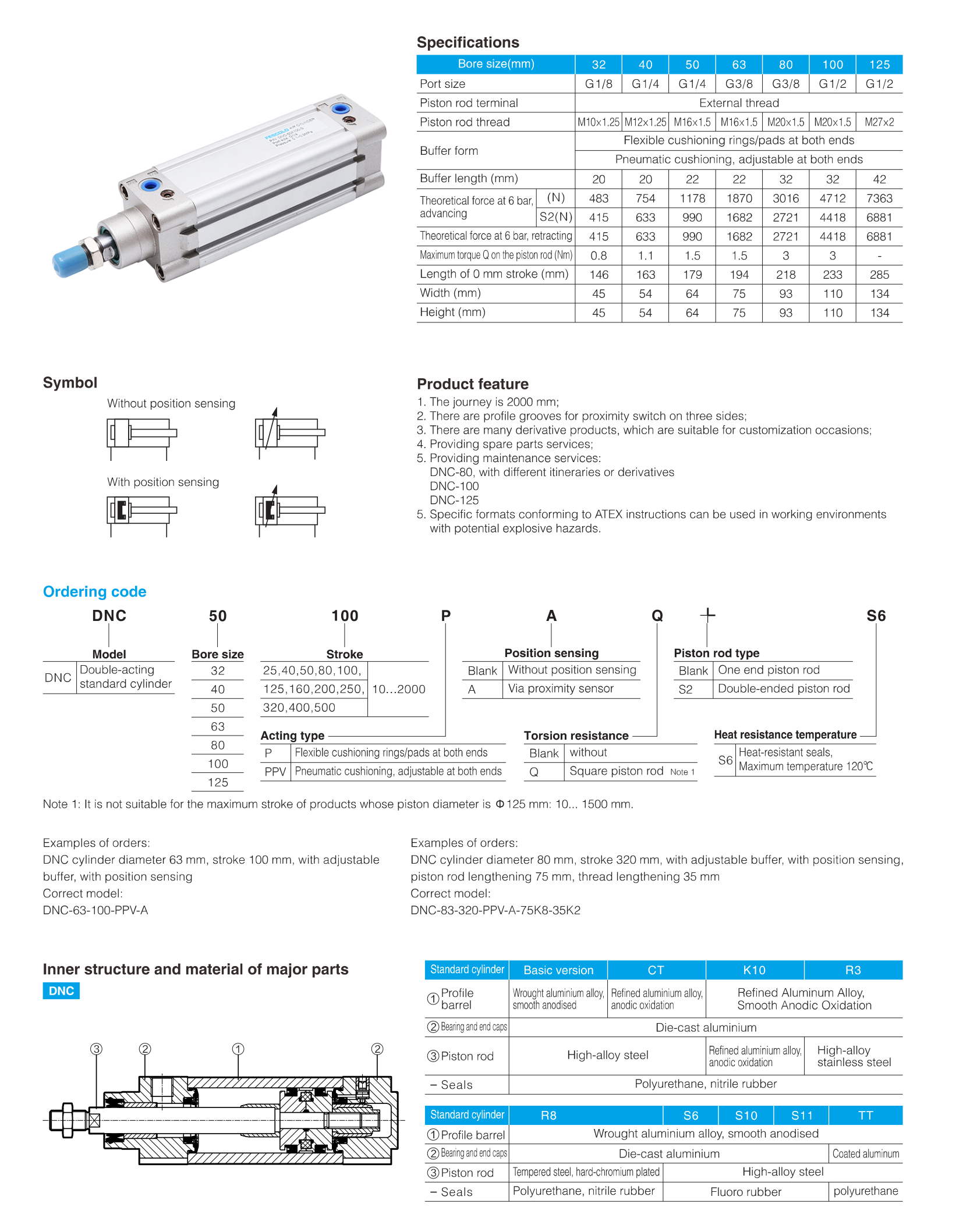

Characteristics

◆ This series of cylinder conforms to: ISO6431 standard.

◆ There is an adjustable buffers at the terminals of the cylinder except for mounted cushion.

◆ We can offer different kinds of mounting style according to ISO 6431 standard, like Foot mounting. Front flange mounting, Rear-flange mounting,and so on.

◆ Different thread type can be offered according to customers' requirements, e.g.: BSP, NPT etc.

◆ Needn't lubricate on piston rod by oil.

Key Benefits:

Standard Interchangeability

This cylinder is directly interchangeable with standard cylinders from numerous domestic and international brands in terms of mounting dimensions and performance parameters. This greatly simplifies equipment design, maintenance, and spare parts management.

High Reliability and Structure

This cylinder features a tie-rod structure, making it robust and durable. The piston rod surface is typically hard chrome plated for wear and corrosion resistance. High-quality seals ensure low friction and long service life.

Flexible Installation

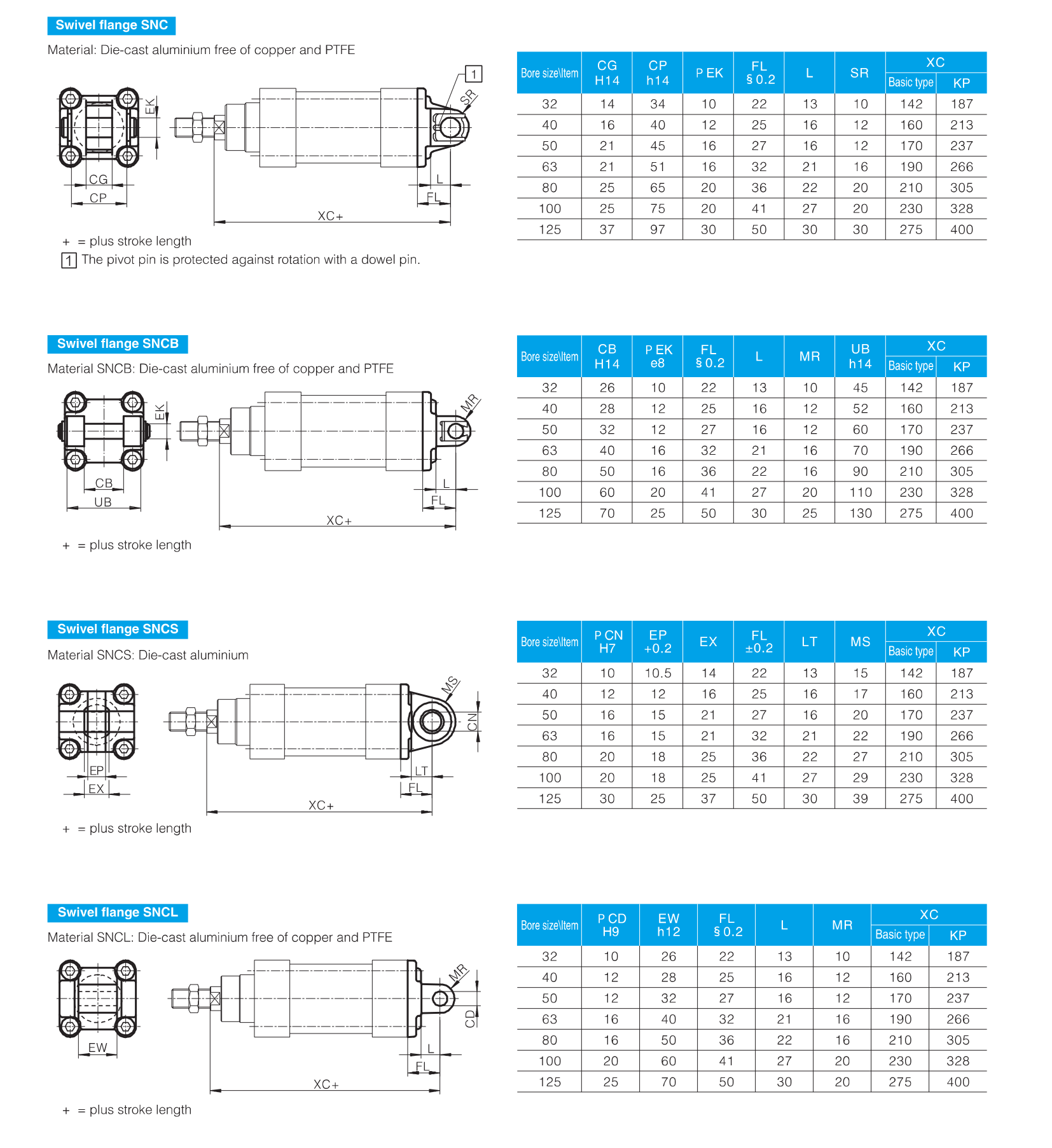

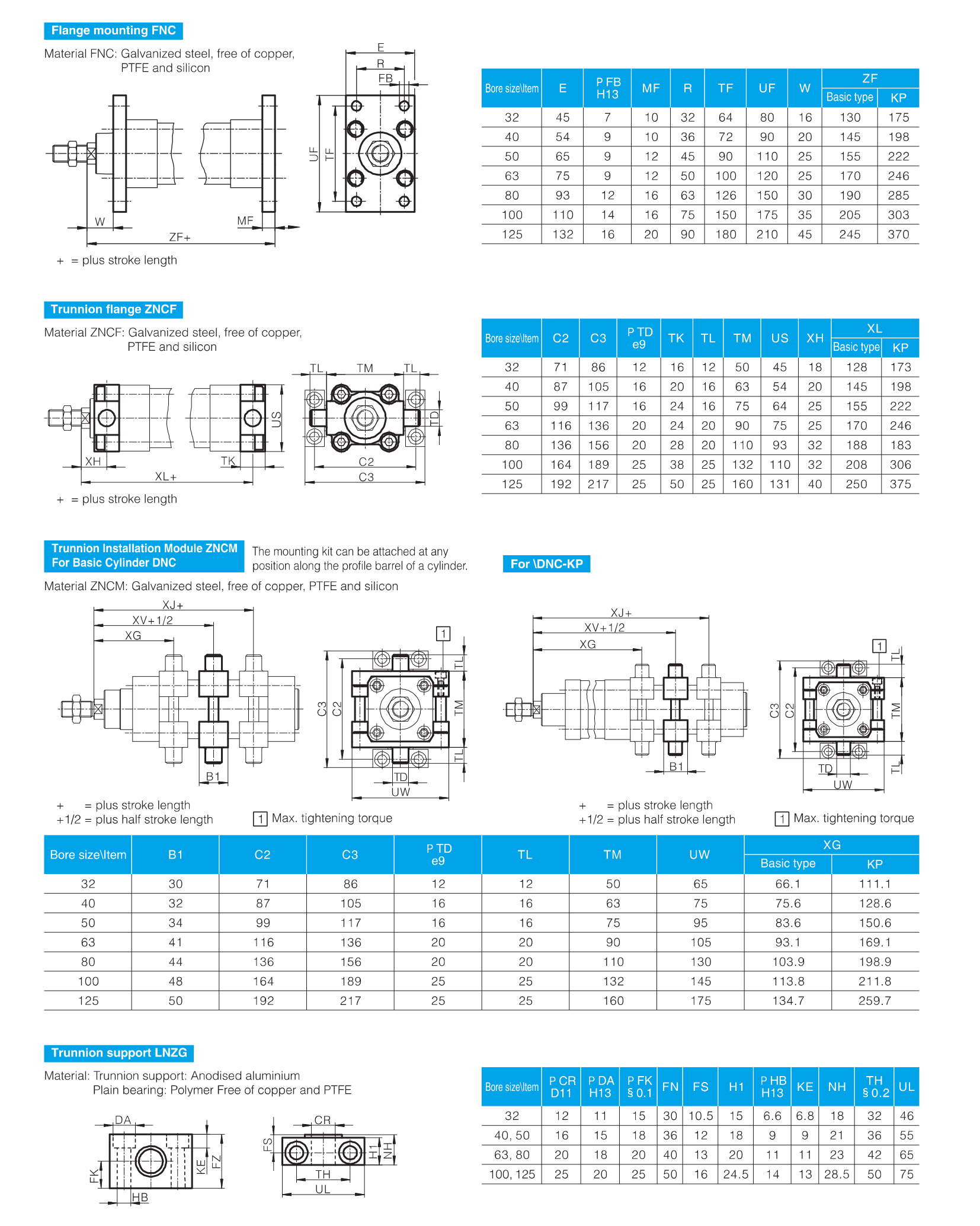

Fokca offers a wide range of DNC standard mounting accessories, such as basic, foot-mounted, flanged, and clevis types, allowing for easy integration into various mechanical structures.

Multiple Stroke Length Options

DNC typically covers common specifications from 32mm to 100mm stroke. Adjustable air dampers are optional, and magnetic switches for position detection can be installed.
