Ultimate Guide to Pipe Fitting

Since pipe fittings connect pipelines with various components, understanding them is crucial for the design, use, and maintenance of piping systems. These components, together with the pipes, form the piping network by connecting, controlling, or changing the direction of flow within the system. Given the wide variety of fitting types and materials, finding the right pipe fittings can be a challenging task.
This blog will provide an overview of the most common types of pipe fittings, their materials, and functions, along with tips on how to choose the best fittings for any project.

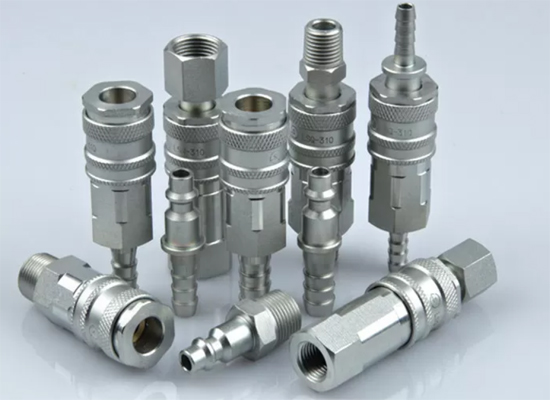

What Is Pipe Fitting

Pipe fittings are essential components for connecting and adapting pipelines. Whether it's a household water supply system or a high-pressure industrial pipeline, fittings play a critical role. There are various types of fittings designed to meet the demands of different applications and industries.

You might still have some questions, such as: What key factors should be considered when selecting pipe fittings? Which is better — threaded fittings or flanged fittings? And which type of fitting is most suitable for home plumbing installations?

Common Types and Uses Of Pipe Fittings

The most common types of pipe fittings include elbows, tees, couplings, and reducers. Different types of fittings are used for various piping layouts and for adjusting the direction of fluid flow. Selecting the appropriate type of fitting can significantly improve the efficiency of a piping system.

Tees, Y-branches, and cross fittings are widely used due to their multi-branch connections. They are commonly applied in diverse systems and feature standardized sizes and specifications, making them easy to replace and interchange. Among them, elbows are another commonly used fitting, designed to change the direction of fluid flow by bending the pipe at specific angles. They are frequently used in drainage systems.

Tees, Y-branches, and cross fittings are widely used due to their multi-branch connections. They are commonly applied in diverse systems and feature standardized sizes and specifications, making them easy to replace and interchange. Among them, elbows are another commonly used fitting, designed to change the direction of fluid flow by bending the pipe at specific angles. They are frequently used in drainage systems.

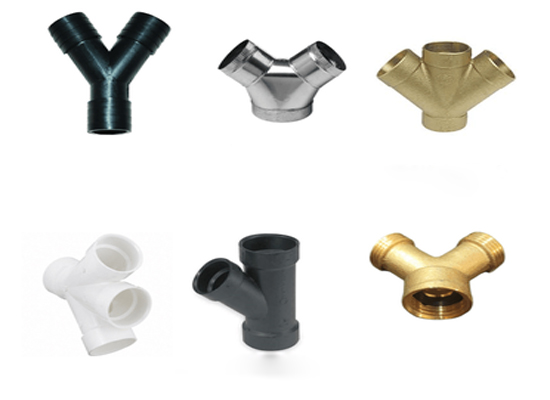

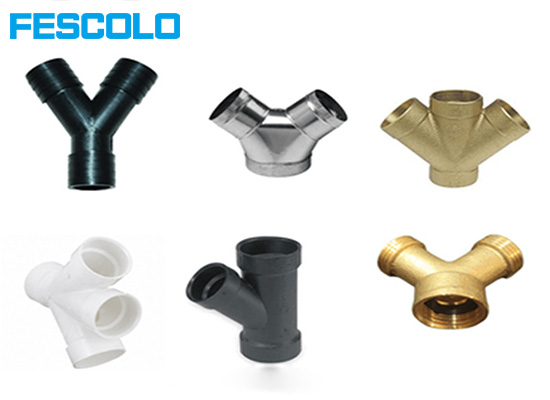

Tee、Y-branch and cross fitting

Tee: A tee fitting is shaped like the letter "T" and consists of one main run and one branch that is typically positioned at a 90-degree angle to the main pipe.

Y-Branch: A Y-branch fitting is shaped

 like the letter "Y," with the branch connecting to the main run at a smaller angle (usually 45 degrees), allowing for smoother flow transitions.

Cross: A cross fitting is shaped like a plus sign ("+"), featuring four connection points positioned at the top, bottom, left, and right.

Elbow Fittings:

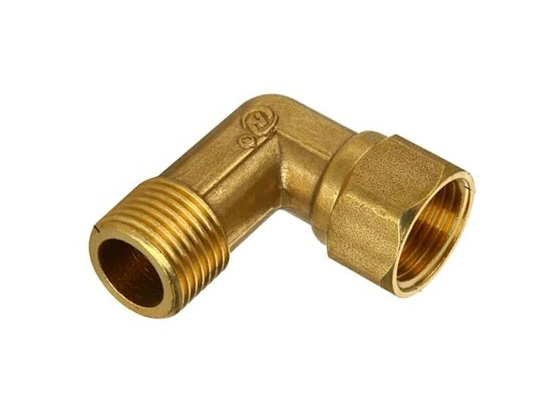

Elbow fittings are used to change the direction of a pipe. They usually involve a single pathway and do not split the fluid flow. Common elbow angles include 90°, 45°, and 22.5°, making them ideal for redirecting flow in a piping system. They are widely used in both water supply lines and drainage systems. Brass elbow fittings are particularly common.

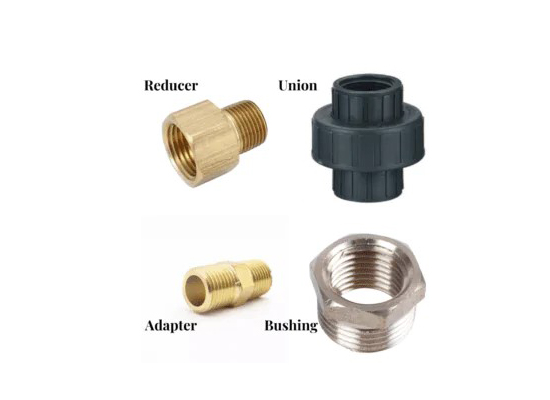

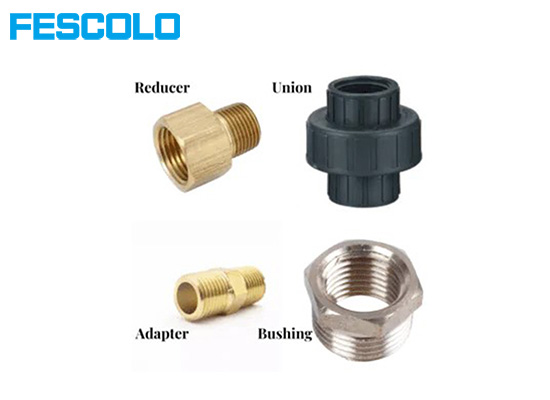

Coupling、Bushing、Adapter  and Union

Coupling
Used to connect two sections of pipe with the same diameter, serving the purpose of extension or repair.

Bushing
Used to connect pipes of different diameters by converting a larger pipe size to a smaller one, typically through male and female threads or sockets.

Adapter
Used to connect different types of pipes or interfaces, such as transitioning from a threaded connection to a welded one.

Union
A detachable fitting that allows easy installation, removal, and maintenance of the piping system; commonly used in areas that require frequent servicing.

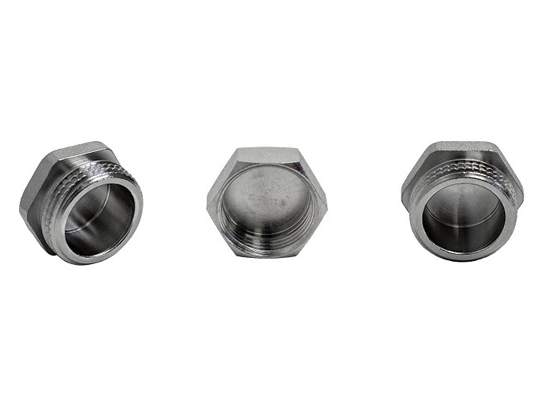

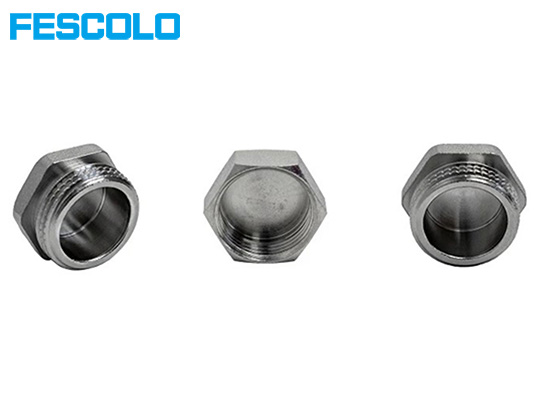

Cap and Plug Fittings

Cap: Used to seal the end of pipelines to prevent liquid or gas leakage.

Plug: Internal threaded ports used to seal pipelines for easy disassembly or expansion of the system in the future.

Additional Pipe Fittings to Consider

Flange Fitting:
A flange connector is a flat, round fitting used to secure pipes to walls or other fixed structures.

Trap Fitting:
U-shaped Trap: Installed beneath sinks, the P-trap prevents sewer gases from entering the home and helps collect debris that might clog the drainage system.

Elbow Tee:
Combines the functions of an elbow and a tee, used for branching at corners—commonly applied in tight or irregular spaces.

Blind Flange:
A flange without any openings, used to seal the end of a pipeline for pressure testing or maintenance.

Stub Flange:
Used with loose flanges, commonly applied in systems requiring frequent disassembly and corrosion resistance.

How to Choose the Right Pipe Fittings for Plumbing

Choosing the right pipe fittings for plumbing is essential for system efficiency, leak prevention, and long-term durability.

Pipe Material：Different materials require compatible fittings.

Purpose of the Connection：Each fitting has a specific function，we need to know the pipe fittings are used for

Match the Pipe Size:  Accuracy size can prevent leaks and pressure issues.Fittings must match the inner or outer diameter of your pipe.

Check Pressure and Temperature Ratings: Match fittings with your system's operating pressure and temperature range.

Common Pipe Fitting Materials

PVC and CPVC: These materials are lightweight and corrosion-resistant, making them popular in residential plumbing. They are easily joined using solvent-based adhesives.

Copper: Known for its durability and heat resistance, copper is commonly used in water supply lines. Soldering is the standard method for connecting copper, ensuring a tight seal in copper fittings.

PEX: PEX piping is flexible, durable, and easy to install, widely used in modern plumbing systems equipped with PEX fittings. It is especially resistant to freezing damage and is highly compatible with push-fit fittings.

Black Steel and Galvanized Steel: Often used in gas lines and older plumbing systems.

Brass: Corrosion-resistant and suitable for potable water applications, commonly found in brass fittings.

Each material has its advantages, but selecting the right one depends on the plumbing application and environmental conditions.

Threaded vs Flanged Pipe Fittings: Pros and Cons

Choosing between threaded and flanged fittings depends on the specific application and spatial requirements,The following is a comparison of the advantages and disadvantages of two types of connectors.

Threaded Pipe Fittings

Advantages:

Easy Installation: Requires no complex tools—can be installed with a simple wrench, ideal for small-scale or temporary projects.

High Detachability: Easy to maintain, replace, or adjust within the system.

Lower Cost: Both material and labor costs are relatively low.

Disadvantages:

Pressure Limitations: Not suitable for high-pressure systems; sealing performance decreases under pressure.

Leak Risk: Threaded joints may loosen over time, increasing the risk of leaks.

Flanged Pipe Fittings

Advantages:

Strong Connection & Good Sealing: When used with gaskets, flanges offer excellent sealing and robust mechanical strength.

High Interchangeability: Highly standardized, making it easy to integrate across different brands or systems.

Disadvantages:

Bulky Design: Larger and heavier than threaded fittings, not ideal for confined spaces.

Precise Alignment Required: Flange faces must be parallel and bolt holes aligned, requiring accurate installation.

Recommended Pipe Fittings for Home Plumbing Installation

The following types of pipe fittings are well-suited for residential plumbing systems,the reasons are as follows:

PPR Heat-Fusion Fittings: Ideal for hot and cold water systems due to their durability, corrosion resistance, and strong sealing achieved through heat fusion.

Copper Pipes + Soldered Fittings: A traditional and reliable option for water supply lines, known for their heat resistance and long lifespan.

PEX Pipes + Press or Push-Fit Fittings: Flexible and easy to install, suitable for modern plumbing systems, especially in renovation or limited-space applications.

PVC Solvent-Weld Fittings: Commonly used in drainage and low-pressure water systems, offering a cost-effective and easy-to-install solution.

HDPE Electro-Fusion or Heat-Fusion Fittings: Highly durable and corrosion-resistant, suitable for underground or exterior piping applications.

Tip:
For underfloor heating systems that require both pressure and heat resistance, PERT/PEXa heating pipes, copper pipes, and welded or press-fit fittings provide highly reliable performance.

Common Installation Tips for Pipe Fittings

Align Fittings Neatly: Ensure that all fittings are installed horizontally or vertically and avoid any twisting or misalignment during installation.

Pressure Test After Installation: Always perform a pressure test once the system is installed to check for leaks and ensure proper sealing.

Keep the Work Area Clean: Maintain a clean construction environment to prevent debris or foreign objects from entering the pipes.

Document Hidden Work: Take photos of concealed pipework before covering, which helps with future maintenance or repairs.

Comply with Local Building Codes: Follow local plumbing regulations, such as required spacing between hot and cold water lines and distances between support points.
