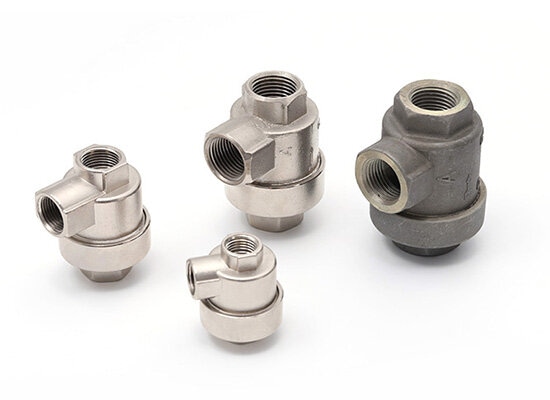

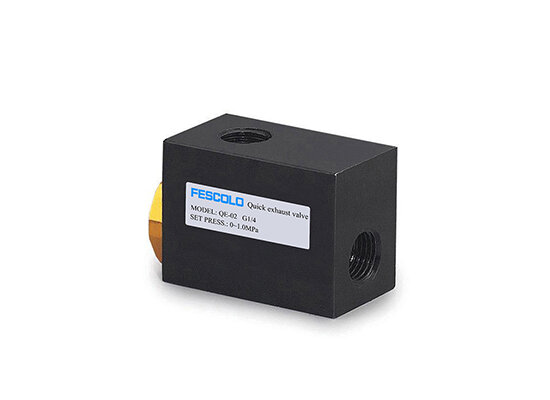

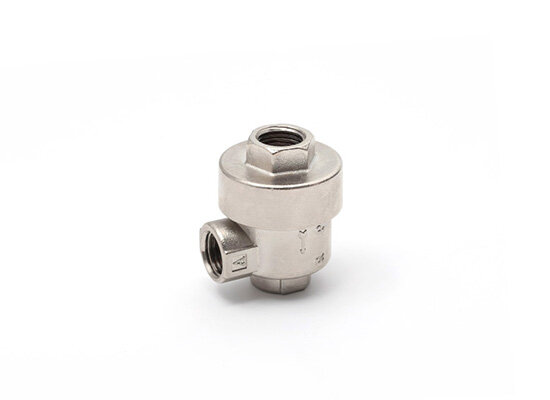

In an automation system, there is a member, quick exhaust valve is a type of pneumatic valve used in pneumatic systems to quickly release compressed air from devices like cylinders or actuators without passing through the entire system. The main purpose of the quick exhaust valve is to increase the speed and efficiency of the pneumatic system by quickly and efficiently exhausting air, allowing actuators to return to their default position more rapidly.
Quick exhaust function: Provides a direct path for exhaust gases to quickly exit the system, helping to reduce cycle time and improve overall system performance.
Simple design: It typically consists of a valve body with a valve core or diaphragm that opens when the system pressure reaches a certain level.
Pressure release: The quick exhaust valve helps rapidly release pressure, preventing component damage and maintaining system stability.
Installation flexibility: It is usually installed directly onto the cylinder or other components of the system that require quick exhaust.
Quick exhaust valves play a crucial role in the following industrial manufacturing scenarios:
Cylinders: Enhance the speed of cylinder movement.
Automation systems: Ensure quick and precise control of pneumatic actuators.
Robotics: Accelerate the response time of robotic arms and hands.
Industrial equipment: Essential in systems where quick exhaust and fast action are critical, such as packaging or assembly lines.
In order to quickly discharge compressed air from the pneumatic system and shorten the cycle time of actuators or cylinders, quick exhaust valves follow the following working process:
Air Supply: When compressed air is supplied to the system, it enters the actuator or pneumatic cylinder, causing it to extend or perform the desired action.
Action Initiation: As the actuator reaches its desired position or when it needs to return, the system's control valve directs the air flow to the Quick Exhaust Valve (QEV).
Exhaust Path: The QEV has a specially designed exhaust port that opens once the exhaust needs to be released. When air needs to be released from the actuator or cylinder, the valve opens its exhaust port and allows air to flow directly out, bypassing the rest of the system.
Poppet or Diaphragm Mechanism: Inside the valve, there's typically a poppet (or a diaphragm) that opens to create a direct and larger exhaust path for the compressed air. This ensures that air can exit quickly without restriction, facilitating a rapid return of the actuator to its starting position.
Air Flow Control: As the actuator completes its cycle or returns to its initial position, the valve automatically shuts off the exhaust when the air pressure drops or when the actuator reaches the end of its stroke.
Speed and Efficiency: By releasing the air pressure quickly and directly, a QEV helps speed up the return movement of cylinders or actuators, improving cycle time efficiency. This results in faster operation and reduced wear on the components by reducing unnecessary friction or pressure buildup.
The Quick Exhaust Valve allows pneumatic systems to expel air rapidly from actuators or cylinders, helping to reduce cycle times and improve the efficiency and performance of pneumatic systems. Its poppet or diaphragm mechanism creates a fast, unobstructed path for air to escape, significantly enhancing the system’s response speed.
Q1:What is quick exhaust valve?
A Quick Exhaust Valve (QEV) is a type of pneumatic valve designed to quickly expel air from a pneumatic cylinder or actuator. It reduces the cycle time by providing a rapid exhaust path for the compressed air, ensuring faster retraction or return movements of actuators.
Q2:How to make a quick exhaust valve?
The following materials and steps are required for installation:Valve Body、Sealings、Piston or Valve Element、Springs、Fittings
Steps to Make a Quick Exhaust Valve:
Design the Valve Components:
Piston Mechanism:
Spring Mechanism:
Assembly of the Valve:
Inlet and Exhaust Ports:
Testing the Valve:
Q3:Are Quick Exhaust Valves easy to install?
Yes, QEVs are generally easy to install in most pneumatic systems. They are typically installed between the actuator and the control valve, and they come with standardized fittings that are compatible with various system configurations.
