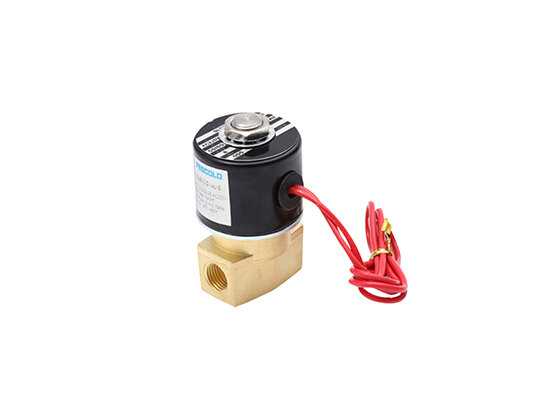

Direct Acting Solenoid Valve

A Direct Acting Solenoid Valve is an electromechanical device used to control the flow of liquids and gases in various industrial and domestic applications. It is one of the most commonly used types of control valves and is known for its simple design and reliable operation.

The valve consists of a solenoid, which is an electrical coil, and a moveable armature that opens and closes the valve's orifice. The armature is typically made of a ferromagnetic material and is positioned within the solenoid.

When electricity is applied to the solenoid, it creates a magnetic field that pulls the armature into the coil, causing the valve to open. When the power is turned off, the armature returns to its original position, closing the valve.

What is a direct-acting solenoid valve?

A direct-acting solenoid valve is a type of solenoid valve that operates without relying on external pressure differential. It relies entirely on the magnetic force generated by the solenoid coil to directly drive the plunger to open or close the valve orifice. It can achieve rapid response without the requirement of a minimum operating pressure.

Advantages of direct-acting solenoid valve

One of the key benefits of a Direct Acting Solenoid Valve is its ability to operate quickly and precisely. This makes it ideal for applications where fast response times and accurate control are required, such as in fluid control systems and process control applications. Additionally, the valve can be operated remotely, making it easy to control the flow of fluids or gases from a central location.

Another advantage of the Direct Acting Solenoid Valve is its durability and reliability. The valve is typically made from high-quality materials that can withstand harsh conditions and corrosive fluids, ensuring that it will provide reliable service for many years. In addition, the valve is often designed with a built-in mechanism for preventing over-pressurization, ensuring that it will not fail even in the presence of high-pressure fluids.

Types of direct-acting solenoid valve

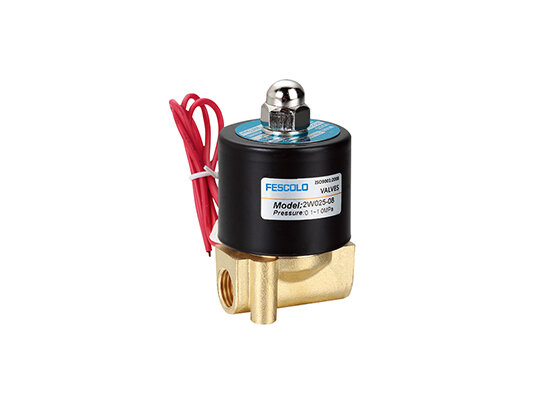

2 way direct acting solenoid valve

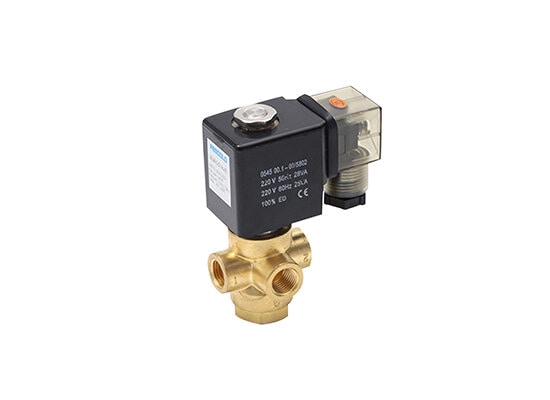

3/2 way direct acting solenoid valve

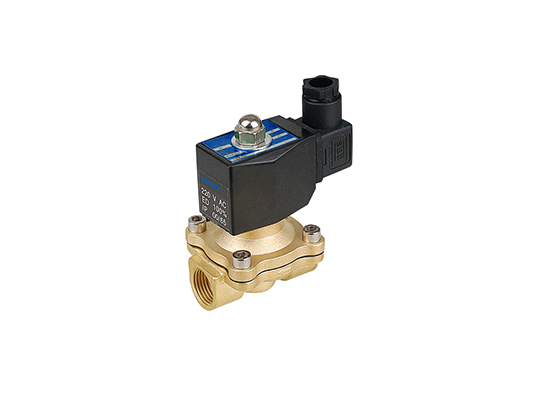

2/2 way direct acting solenoid valve

The limitations of direct-acting solenoid valves

However, Direct Acting Solenoid Valves are not without their limitations. For example, they are limited in their flow control capabilities, as they can only provide on/off control. This means that they are not well-suited for applications that require precise flow control, such as metering applications. Additionally, the valve can be prone to failure if the electrical supply is disrupted, which can result in a loss of fluid or gas control.

Conclusion

The Direct Acting Solenoid Valve is a versatile and reliable device that is widely used in a range of industrial and domestic applications. Its simple design and fast response times make it ideal for applications that require quick and accurate control, while its durability and reliability ensure that it will provide long-lasting service. Despite its limitations, the Direct Acting Solenoid Valve is a valuable tool for controlling the flow of liquids and gases in many applications, and it is likely to continue to be widely used in the future.

For more information, please feel free to Contact with us.If you want to learn more about the differences between direct acting soleoid valves and pilot valves, please follow our blog post.
