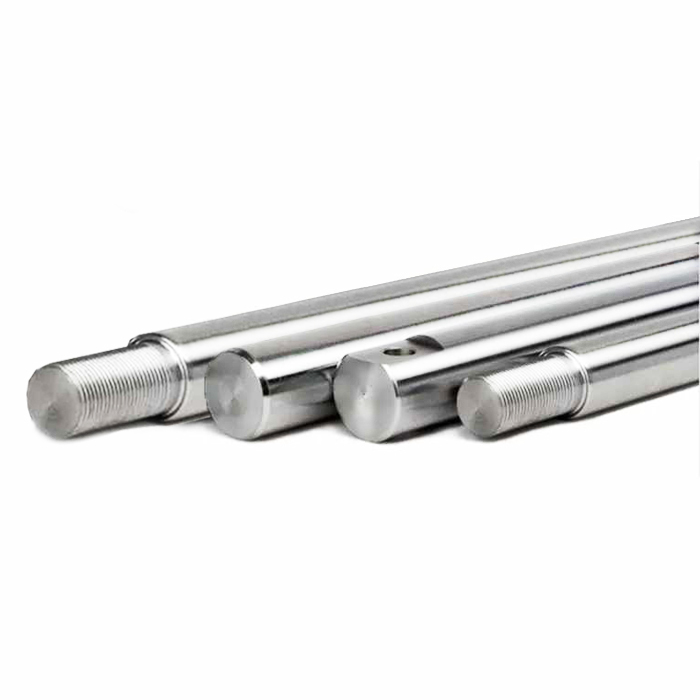

If you are familiar with cylinders, you should have a certain understanding of piston rods. They are like syringes, with one section connected to the thrust front cover and the other connected to the rubber material that squeezes air or liquid. The piston rod is a kind of critical Pneumatic cylinder accessories,connecting to the piston and passing through the cylinder front cover to facilitate the transmission of pressure and generate mechanical motion.
The pneumatic cylinder piston rod is a critical component of a pneumatic cylinder, It is also a type of pneumatic cylinder accessories，responsible for transmitting the force generated by the compressed air to the external load. It plays a pivotal role in converting the energy produced by the cylinder into mechanical motion. As an essential pneumatic cylinder accessory, the piston rod is part of the cylinder's internal mechanism and directly connected to the piston.
Position within the Pneumatic Cylinder:The piston rod is located at the output end of the cylinder, connecting to the piston inside the cylinder. It extends and retracts when the compressed air acts on the piston. The rod moves linearly, driving the motion of any external mechanism or equipment it is attached to.
Function and Role:The primary function of the piston rod is to provide mechanical motion by transferring the force generated by the compressed air. It enables the linear movement of the piston and allows the cylinder to perform tasks such as lifting, pushing, or pulling. It is essential for providing precise and controlled movement in industrial applications like material handling, automation systems, and machinery operations.
Piston rod is typically made from high-strength materials to ensure durability and resistance to wear. The most common materials include:
Carbon Steel: Carbon steel piston rod offers good strength and is commonly used in standard applications.
Stainless Steel: Provides excellent corrosion resistance and is ideal for use in harsh environments, such as in the food processing, pharmaceutical, or chemical industries.
Chromed Steel: Often used for its smooth surface finish and additional resistance to corrosion and wear.
Aluminum: In certain lightweight applications, aluminum rods may be used for their reduced weight, although they are less durable than steel options.
Standard Piston Rod: Typically used in basic pneumatic applications with standard load and pressure requirements.

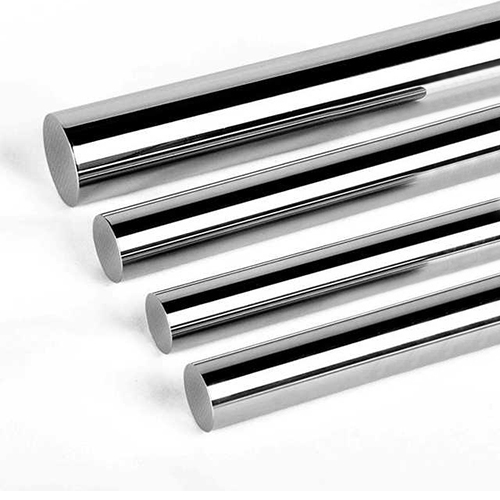

Chromed Piston Rod: These rods have a chrome-plated surface to increase resistance to wear, corrosion, and scratching, especially in harsh environments.
Guided Piston Rod: These rods are equipped with guide mechanisms to help maintain straight motion under high load conditions and reduce lateral movement.
Non-Rotating Piston Rod: In applications where rotation needs to be avoided, these rods are designed to prevent the rod from rotating during the actuation of the cylinder.
Custom Piston Rod: These are designed for specific applications, with unique material selections, dimensions, or coatings tailored to meet specific performance or environmental requirements.
In pneumatic and hydraulic systems, the piston rod transforms the pressure within the cylinder into linear motion, driving loads or executing specific tasks.
Typically, it is a long and slender rod, with dimensions and materials varying based on specific applications and working environments.
The design and selection of piston rod are paramount for ensuring the normal operation of the cylinder and achieving specific work tasks. Piston rod is categorized by material,
such as #45 carbon steel piston rod with hard chrome-plated and stainless steel piston rod.
Different types of piston rod can be chosen based on specific requirements to meet the demands of diverse working environments.
Due to the reciprocating motion of the piston rod through the front cover, dynamic sealing is required. This places higher demands on the surface finish of the piston rod. Generally,
the surface finish of the piston rod needs to achieve Ra0.2 or better, and the tolerance of its diameter is typically within -0.01 to -0.02mm.

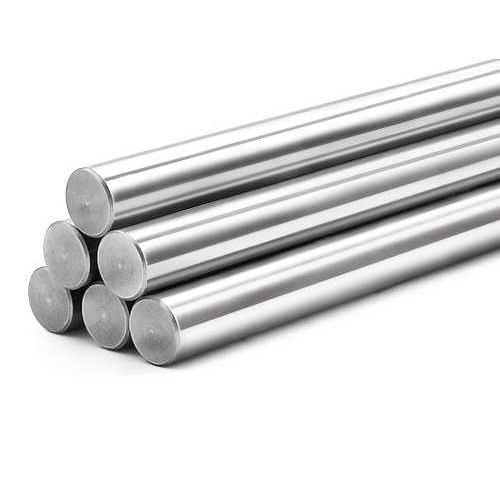

Here, we list four common types of piston rod:

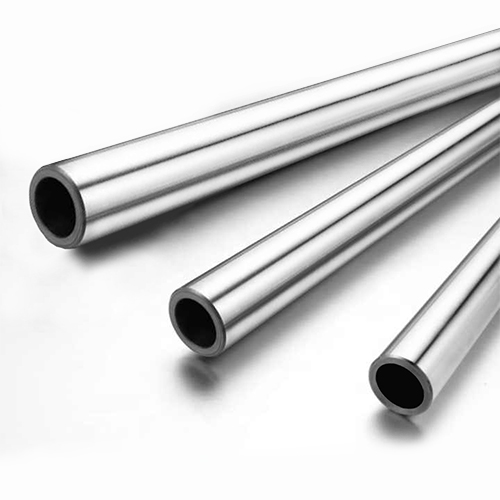

◆ Stainless Steel Hollow Piston Rod
In conclusion, the pneumatic cylinder piston rod is an integral part of pneumatic cylinders, serving as the mechanism that transforms air pressure into mechanical motion. With its selection of materials, various types, and customized designs, it ensures the efficiency, reliability, and durability of the pneumatic systems in which it is used.
