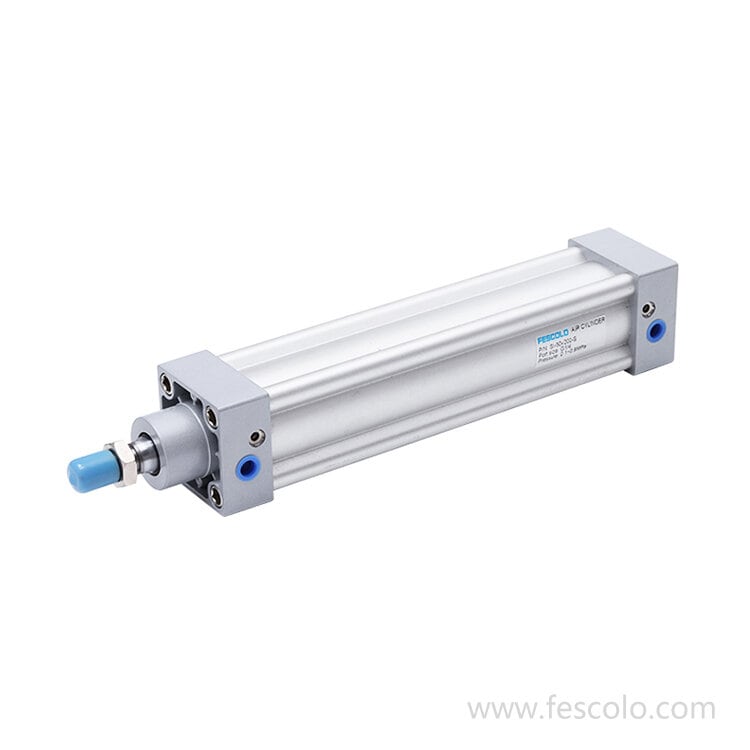

The SI cylinder complies with the ISO 15552 standard and features a square-end cover structure. With larger bore and piston rod sizes, it delivers higher output force compared to the ISO 6431 series. It is suitable for industries such as lifting heavy workpieces, operating large valves, and press feeding.
The SI Series ISO15552 standard cylinder is manufactured according to the ISO15552 standard, offering universal dimensions and high compatibility.
Characteristics:
◆ This series of cylinder conforms to: ISO6431 standard.
◆ There is an adjustable buffers at the terminals of the cylinder except for mounted cushion.
◆ We can offer different kinds of mounting style according to ISO 6431 standard, like Foot mounting, Front flange mounting, Rear-flange mounting, and so on.
◆ Different thread type can be offered according to customers' requirements, e.g.: BSP, NPT etc.
◆ Needn't lubricate on piston rod by oil.
